What is a Dali Lighting Control System – Everything you need to know

Dali Lighting Control System


In the realm of modern energy-efficient building solutions, lighting stands out as a crucial aspect of sustainability. Both in residential and commercial spaces, the need for intelligent lighting control systems has become paramount. Enter the DALI lighting control system – a cutting-edge solution that revolutionizes how we manage illumination. As a response to the escalating energy consumption associated with lighting, DALI presents an innovative approach to illumination control. At its core, DALI focuses on advanced dimming capabilities for luminaries, catering to customized lighting experiences. With its compatibility with smart lighting, this system seamlessly integrates convenience and efficiency. If you're considering the integration of DALI into your lighting infrastructure, this comprehensive guide delves into the essentials of the DALI lighting control system.

Dimming and Digital Innovation

When investigating the intricacies of LED lighting, it becomes evident that dimming methods vary. The conventional analogue dimming, utilizing DC voltage signals, contrasts with the contemporary digital dimming technique, which translates signals into digital bits. It is this digital dimension where the significance of the DALI lighting control system becomes evident. By harnessing digital sophistication, DALI ensures precise lighting control, setting the stage for a more adaptable and sustainable lighting environment.

Empowering Your Lighting Control

Looking to elevate your lighting control to a new echelon of efficiency and customization? Our Definitive Guide to the DALI Lighting Control System offers an in-depth exploration of this technology. From setup to utilization, this guide demystifies DALI, empowering beginners and experts alike to harness its potential. Unlock the secrets of configuring DALI systems for meticulous lighting control, accompanied by insider tips for maximizing its benefits.

Sustainable Future through DALI

Amid the current global focus on sustainability and energy-efficient architecture, we must not overlook the role of comfort and convenience in these spaces. This is where DALI lighting control seamlessly integrates. By affording adaptable, energy-efficient illumination without compromising on comfort, DALI underscores its relevance in the pursuit of a greener, more efficient future.

For those seeking foundational knowledge on DALI, our separate blog offers an overview of its basics. But if you're ready for a comprehensive exploration, this blog is your portal into the realm of DALI lighting controls. Unearth the "What" and "Why" of DALI, delve into its operational intricacies, and discover the compelling reasons behind Lumos Controls' DALI solutions.

In a world where innovation shapes our surroundings, the DALI lighting control system emerges as a beacon of smart illumination. More than a technology, it's a pathway to balanced, energy-efficient, and user-centric lighting experiences.

What can DALI do and how does it work?

DALI, which stands for Digital Addressable Lighting Interface, emerges as a dedicated protocol that empowers the creation of adaptable, scalable, and dependable lighting networks. This innovative system's inner workings are the cornerstone of its effectiveness, driving modern lighting solutions forward.

What Can DALI Do?

DALI is not just a protocol; it's a dynamic framework that revolutionizes lighting control. Rooted in IEC60929 from the late 1990s and refined through subsequent iterations, including the current DALI-2 in IEC62386, this two-way communication protocol is purpose-built for lighting. Beyond merely orchestrating illumination, DALI's capabilities extend to configuring entire lighting systems, pinpointing malfunctioning luminaires, and providing real-time insights into the status of each luminaire.

How Does DALI Work?

At the heart of the DALI system lies a communication infrastructure, the DALI bus. This unassuming two-wire conduit serves as the lifeblood of the entire network, transmitting command signals between input controllers and the LED drivers that oversee final light outputs. The symphony of DALI's components—comprising the DALI bus power supply, control input devices, and control gear—harmonizes to achieve seamless lighting control and management.

The DALI Bus

The foundational element of the DALI system, the unpolarized DALI bus, carries out the exchange of command signals with precision. Beyond lighting control, this two-way protocol serves as a linchpin for diverse tasks, from configuring the entire lighting ecosystem to identifying troubled luminaires and obtaining real-time lighting conditions across all fixtures. An integral DALI power supply furnishes 16 V of power to the bus system, ensuring its consistent operation.

Control Devices

DALI's orchestration is facilitated by two primary control devices: application controllers and input devices. Application controllers assimilate information, make informed decisions, and dispatch definitive commands to receiving devices. These controllers derive insights from diverse sources—ranging from input devices to external bus systems—and regulate data traffic within the bus system. Simultaneously, input devices encompass an array of tools, including light level sensors for precise illumination adjustment, PIR motion detectors for responsive lighting based on movement, pushbuttons for straightforward operations, and more.

Control Gear

At the receiving end, control gear, predominantly DALI LED drivers, become the conduits for translating commands into tangible illumination. The dance between application/input controllers and LED drivers ensures the accurate modulation of current to illuminate lamps. This control gear, operating collaboratively with DALI master devices, orchestrates the dynamic interplay of lighting scenarios.

DALI Addresses

A distinctive hallmark of DALI is the assignment of unique addresses to LED drivers, empowering granular control. This feature facilitates both group-level commands for coordinated lighting adjustments and individual-level commands for specific luminaires. The result is unparalleled flexibility in scene-setting and grouping, enabling the tailoring of lighting experiences to diverse contexts and applications.

In essence, the DALI lighting control system transcends conventional paradigms, fusing precision with versatility to offer an avant-garde solution for modern illumination management. From its robust bus system to its intricate dance between controllers and drivers, DALI stands as a beacon of efficiency, adaptability, and user-centric control in the realm of lighting technology.

What Is A Dali Lighting Control System?

The DALI lighting control system, short for "Digital Addressable Lighting Interface," revolutionizes the way we manage LED lighting systems. Emerging in the 1990s, DALI has grown into a dominant standard for lighting control. Its complexity lies in being a sophisticated digital protocol that facilitates precise control over lighting. Each light fixture in a DALI system can be individually addressed and managed through a 2-core lighting control circuit. This protocol enables devices to listen for either group addresses or unique ones, enhancing flexibility.

Compliant with international standards and backed by numerous manufacturers, installers, and suppliers, the DALI lighting control system ensures seamless integration and interconnectivity. The IEC 62386 international standard mandates the DALI logo on all components within a lighting network, regardless of the manufacturer. This emblem guarantees harmonious functionality among products.

DALI's evolution gave birth to DALI-2 in 2020, aligning with the IEC 62386 standard. This update expands compatibility by incorporating control devices like application controllers and input controllers, fostering greater interoperability between various manufacturers' lighting products.

The DALI control system acts as the communicator between LED drivers, LED ballasts, motion sensors, and brightness sensors. Its two-way communication network unleashes a realm of lighting applications due to its exceptional interoperability. By utilizing digital signals, DALI protocols transmit lighting commands. Users can also troubleshoot the system, perform diagnostics, and save or recall over 16 DALI scenes with a DALI lighting controller system.

A DALI lighting system offers a plethora of benefits, including dimming options for luminaires, control over individual LEDs or LED groups, adjustment of LED warmth and brightness, and even changing colors of RGBW LEDs.

To sum it up, the DALI lighting control system ushers in a new era of precise lighting management. Its intricate protocol, seamless integration, and flexibility make it an indispensable tool for modern lighting solutions. Whether you're an installer, manufacturer, or someone looking to elevate your lighting experience, understanding the DALI lighting control system can illuminate your path to advanced lighting control.

How Does A DALI Lighting System Work?

To grasp the inner workings of a DALI lighting control system, let's delve into its vital components and their functions. The DALI system operates through a DALI bus, transmitting commands to unique addresses assigned to LED drivers. These LED drivers, responsible for regulating the current flowing through LEDs, control the final light output, ensuring safe illumination without overloading. Once a command is dispatched, the control system sends out a signal, guiding the lights to follow instructions. Imagine instructing all lights in a specific room to turn off; this command resonates because each light recognizes its room affiliation. This centralized precision empowers users to oversee an entire room's lighting system from one focal point.

A distinguishing feature of DALI systems is their bidirectional nature. Each light fixture communicates back to the control unit, reporting information. In cases of single light malfunctions, the central control unit promptly notifies the user. The flexibility of DALI shines in its widespread application, offering lighting control across multiple locations through various circuits. To efficiently span an entire building, several networks interconnect within a DALI system, enabling seamless centralized control.

A DALI system introduces a spectrum of brightness levels, dimming options, and on/off functionalities. Additionally, preset modes facilitate altering light patterns during scheduled timeframes, promoting energy efficiency. The system's foundation rests upon three key components: the DALI bus power supply, control gear, and control input devices.

The DALI bus serves as the network's core, employing a two-wire configuration to ferry command signals from controllers to receiving applications like LED drivers. Beyond lighting control, this configuration aids in pinpointing malfunctioning fixtures, monitoring current lighting conditions, and configuring the luminaire system. This component requires a dedicated bus power supply, delivering 250 mA or 16V to the DALI bus system.

At the receiving end, the control gear houses the primary DALI LED driver, supplying light to lamps. This driver, in tandem with input controllers, ensures precise current supply to the lamp. Meanwhile, control devices encompass application controllers and input appliances, collectively governing the system's functions. Application controllers process data from diverse sources, managing data traffic and sending 16-bit commands to control gear. Input devices transmit real-time user-generated instructions, whether through motion detectors, light level sensors, sliders, buttons, or sophisticated building management systems.

In essence, a DALI lighting system orchestrates illumination through meticulous address-based commands, facilitating nuanced control while enabling seamless communication between devices. By providing this comprehensive breakdown, we ensure a clearer understanding of the DALI lighting control system's inner workings, making it easier for UK residents to harness its benefits effectively.

How are DALI lighting systems wired?

DALI lighting systems revolutionize lighting control with their innovative wiring approach, ensuring flexibility, simplicity, and enhanced efficiency. This advanced control system employs a master-slave architecture, where commands flow from the central controller to the luminaires functioning as slave units. These slave units obediently execute instructions or provide vital information upon request, affirming their operational status.

The transmission of digital signals is facilitated through a streamlined two-wire control wire or a convenient bus configuration. Remarkably, these wires can exhibit both negative and positive polarization, yet the control gears often remain polarity-agnostic, facilitating foolproof connections. Surprisingly, no shielded cables are requisite, and a standard five-wire cable seamlessly supports the DALI system wiring.

Distinguishing itself from conventional lighting setups, DALI eliminates the need for wiring groups, employing a parallel connection to the bus. Mechanical relays find no utility here, as lighting control information flows seamlessly within the commands issued by the central controller. The result? A brilliantly uncomplicated wiring scheme, rife with unparalleled flexibility.

Post wiring, configuration harmoniously merges with controller software. Tailoring diverse lighting scenarios and programs is effortless, with adaptability built into the system's core. Such changes are remarkably accommodated sans any adjustments to the wiring. Personalization is paramount, permitting fine-tuning of individual light settings, encompassing regulation ranges and fade rates, catering precisely to specific needs.

In this era of sustainable lighting solutions, DALI lighting systems stand as vanguards of efficiency. Operating with LED lights, including LED strip lights, LED profiles, linear lights, panel lights, ceiling lights, downlights, spotlights, floodlights, high bay LEDs, and even track lighting, they create an illuminating synergy that caters to modern demands while ensuring energy savings. The UK populace stands to gain significantly from this accessible yet cutting-edge technology, illuminating spaces intelligently while preserving resources for generations to come.

Where are DALI lighting systems used?

DALI lighting control systems have become an integral part of modern lighting automation, finding applications in diverse environments ranging from expansive commercial spaces to cozy residential settings. The adaptability and cost-effectiveness of DALI make it an ideal choice for enhancing lighting experiences. Originally prevalent in large commercial establishments, DALI's capability for precise centralized control swiftly gained popularity in the realm of residential spaces. This surge in adoption is particularly noticeable among homeowners aspiring for optimal lighting control.

The applicability of DALI transcends retrofitting existing structures, with its true potential realized in new construction projects. Unlike retrofits where pre-existing lighting control circuits must be navigated, the installation of a novel DALI system circumvents such complexities, rendering the wiring system simpler and more efficient. This innate simplicity underscores DALI's superiority in new builds, where it can be implemented without the encumbrance of existing infrastructures.

In the commercial sphere, DALI's prowess shines. Business hubs, commercial offices, and production facilities demand tailored lighting solutions, a challenge met adeptly by DALI's flexible control capabilities. By configuring individual and group lighting systems through a central control unit, DALI offers an integrated approach to illuminating vast spaces. Its intelligent two-way communication empowers users with an overarching view of the lighting ecosystem, enhancing operational efficiency.

Residential scenarios mirror the trend, as the work-from-home culture gains prominence. Homeowners now seek adaptable spaces, transforming bedrooms into offices effortlessly. With DALI, this transition is seamless – a few clicks on the central control unit can recalibrate luminaires for a new purpose. The harmony between user-friendly control and versatile configuration makes DALI a valuable asset in homes.

What Are The Benefits Of Using A Dali Lighting System?

Opting for a DALI lighting control system, an advanced and efficient solution, yields a host of advantages compared to conventional lighting systems. The versatility and programmability of DALI technology are just the beginning – let's delve into the key benefits it brings.

Seamless Configuration Without Rewiring

The standout feature of the DALI system lies in its ability to reshape lighting configuration without necessitating extensive rewiring. Whether you're partitioning a room or redefining a workspace, the DALI system empowers you to program lights to function in distinct groups without intrusive rewiring. Dimmable LED bulbs' functions can be tweaked without intricate circuitry adjustments, streamlining adaptability.

Tailored Lighting Programs

DALI's customization prowess lets you design lighting programs tailored to your specific space requirements. Should your area be blessed with ample natural light, you can dim the artificial lighting to save energy. Conversely, if heightened illumination is imperative, you can set brightness limits. Flexibility is paramount, and DALI delivers it seamlessly.

Multifaceted Settings within One System

Employing a DALI network affords the luxury of housing multiple settings within a single cohesive system. This proves invaluable for expansive commercial properties. Imagine a shared floor hosting diverse businesses – with DALI, distinct profiles for each section can coexist harmoniously, optimizing lighting for varied purposes.

Effortless Installation

The installation process sets DALI apart from conventional systems. Its streamlined five-wire setup eliminates the need for excessive circuitry components, facilitating smoother installation. This ease extends to maintenance, as any required work can be executed promptly, minimizing downtime and disruption.

Instant Access to Custom Presets

DALI's adaptability shines with user-friendly presets, swiftly transitioning between different lighting schemes based on space demands. A room's multifunctionality is seamlessly managed – whether for meetings or performances – ensuring the perfect ambiance at the touch of a button.

Accurate Monitoring and Control

DALI's two-way communication ensures precision in monitoring lighting fixtures. You receive real-time insights into functionality and energy consumption. This empowers efficient energy management and maintenance, providing a clear overview of your lighting system's status.

In the realm of lighting control systems, DALI's benefits are both diverse and profound. It offers not just cutting-edge technology, but a user-centric approach that enhances functionality, energy efficiency, and maintenance convenience. As technology continues to evolve, embracing solutions like the DALI lighting control system proves pivotal for enhanced lighting experiences.

DALI Addresses in a Dali Lighting Control System

In the world of modern lighting control, a Dali Lighting Control System stands at the forefront, revolutionizing how we illuminate spaces. At its core are the pivotal DALI addresses, each assigned uniquely to an LED driver within the system. This ingenious allocation of addresses is the backbone of streamlined control, offering a spectrum of possibilities for seamless management. Picture this: the ability to orchestrate a group of luminaries simultaneously, all thanks to these distinctive addresses. But that's not all – the power of individuality remains intact. With a DALI address, you retain the freedom to manipulate lights one by one. This duality extends to encompass grouping and scene-setting, offering a canvas of creativity. The intrigue deepens as specific input control devices—switches and sensors—are married to corresponding light fixtures, tailored to the demands of the setting.

As we delve into the inner workings of the Dali lighting control system, the significance of these DALI addresses comes into sharper focus. This advanced control mechanism breathes life into LED lights, epitomizing flexibility and precision. Moreover, it's worth noting that while these addresses boast contemporary mastery, they harmonize seamlessly with LED lighting essentials: LED strip lights, linear pendant lights, panel lights, downlights, spotlights, floodlights, and high bay LED lights. Even nuanced components like LED strip profiles and aluminium profiles effortlessly join the orchestration, casting spaces in the desired radiance. The LED revolution, further propelled by DALI innovation, sheds light on cost-efficiency, ease of wiring, and thoughtful application.

So, what's the key takeaway? A Dali Lighting Control System, fortified by DALI addresses, embodies the evolution of illumination. Its role in the dynamic interplay of light and space is as profound as it is elementary. Step by step, address by address, the future of lighting control is being rewritten—LED by LED.

How Does DALI Addressing Work?

In a Dali lighting control system, addressing devices is a fundamental process that allows seamless communication and control. DALI employs an efficient method for addressing devices, ensuring smooth operation and management. The process begins with the activation of a randomization component within each device, generating a unique 3-byte number. This number collaborates with a set of specialized instructions, enabling the DALI controller to allocate specific short addresses to each device along the line. Once these short addresses are assigned, the initial random addresses become redundant, and all subsequent communication occurs exclusively through the newly assigned short addresses. This streamlined approach optimizes device control and interaction within the DALI system, enhancing its overall efficiency and responsiveness. With the ability to dynamically assign addresses and facilitate direct communication, the DALI lighting control system stands as a modern, sophisticated solution for managing lighting environments effectively. From cost-effective installation to comprehensive control capabilities, the DALI system continues to illuminate spaces in the most efficient and up-to-date manner.

What Is The Topology Of The DALI Lighting System?

The DALI lighting control system boasts an intelligently designed topology that streamlines communication between the central controller and individual light fixtures. In this innovative arrangement, directives from the controller are flawlessly executed by the light units, which in turn promptly respond to information requests such as unit function evaluations. The beauty of the DALI system lies in its versatility when it comes to wiring. While both negative and positive polarity wires are options, the non-polar nature of the ballast ensures secure connections. Remarkably, the necessity for shielded cables is eliminated, making it feasible to integrate the DALI system seamlessly into a 5-core cable configuration.

A distinguishing trait of the DALI system is its autonomous network structure, unlike other lighting systems that rely on complex wiring groups. Every facet of this system's wiring is parallel to the DALI bus, simplifying the overall setup. A further departure from conventional practices, the DALI control system operates without the need for mechanical relays, as all data transmission is accomplished through controller-initiated commands. This distinctive configuration lends itself to a more straightforward wiring setup, enhancing flexibility compared to other networks.

In the implementation phase, cable connection precedes system configuration through the controller's intuitive software. This pivotal step sets the stage for the creation of diverse lighting programs and scenarios, tailored to specific preferences. The adaptable nature of the DALI system shines as it allows for alterations to be made without overhauling the existing cable infrastructure. Each individual light boasts an array of customizable options, including the ability to fine-tune fade rates and color ranges, granting users an unprecedented level of control.

This advanced yet user-friendly DALI lighting control system transcends traditional paradigms, embracing a more efficient and versatile topology. By simplifying wiring complexities, enabling remote control through controller-initiated commands, and offering customizable lighting experiences, DALI sets a new standard for modern lighting control systems. Whether applied in residential, commercial, or industrial settings, the DALI system illuminates a brighter and more flexible future for lighting solutions.

How To Wire A DALI Lighting System?

Discovering the ins and outs of a DALI lighting control system is only the first step; now, let's delve into the practical aspect of wiring one. Precise execution is key to avoid any glitches in the setup. Here's a comprehensive guide to successfully wiring your DALI lighting system.

DALI systems offer remarkable flexibility when it comes to bus wiring topology. There's a spectrum of arrangements available, from daisy chains to star or tree networks. However, it's important to note that configurations like rings, mixes, or meshes don't align with DALI's functionality. Feel free to incorporate sensors and controllers anywhere in your chosen arrangement, granting you control over your lighting environment.

In terms of installation, you have the option to wire a DALI cable alongside a standard main power supply. This strategic positioning eliminates the need for cumbersome wire separation. Impressive immunity to interference is a hallmark of DALI, thanks to its robust signal-to-noise ratio and wide-ranging digital signal. The DALI lighting control system ensures a seamless and uninterrupted lighting experience.

The cost-effectiveness of a DALI lighting control system, especially in comparison to other LED lighting systems, is noteworthy. From LED strip lights to linear pendant lights, and from LED panel lights to track lights, the DALI system presents a comprehensive solution for various lighting needs.

Wiring your DALI lighting system isn't just about the technicalities; it's about empowering you to transform your space. This guide offers a simplified approach, making the process accessible even to those with elementary-level knowledge. With the wisdom gleaned from sources like Wikipedia, we've crafted a guide that truly serves the needs of UK residents, enabling them to harness the potential of a DALI lighting control system effectively.

How Does DALI Compare to 1-10V?

In the realm of lighting control systems, the choice between DALI and 1-10V carries significant implications for modern illumination setups. DALI, short for Digital Addressable Lighting Interface, and its analog counterpart, the 1-10V driver, both facilitate dimming and control of LED lights, yet they diverge dramatically in approach and capability.

The 1-10V driver, operating on an analog DC voltage signal, influences LED brightness by modulating voltage levels. With zero volts yielding 0% brightness and 10 volts yielding full luminosity, it's a straightforward mechanism. Alternatively, the 1-10V system introduces a smoother transition with a minimum of 1 volt, ensuring a minimum 10% brightness. However, further dimming necessitates turning off the light, enabling precise ambiance control.

DALI, the digital luminary, alters the game entirely. As a digital dimmer, DALI communicates with LED drivers via digital signals, enabling nuanced commands execution. Its software-operated controller fosters unparalleled control and adaptability. Unlike the wiring complexity associated with individual connections for 0/1-10V drivers, DALI streamlines installations with its simpler wiring. Each LED lamp boasts a unique address, facilitating central command control and accommodating intricate lighting systems seamlessly.

The disparities extend to the very nature of these systems. While 0/1-10V drivers emit analog voltage signals for dimming, DALI harnesses digital signals for multifaceted control, including dimming, color temperature adjustment, and more. The 0/1-10V drivers permit unidirectional communication, only end-users influencing lamps, without feedback to the source. In contrast, DALI embraces bidirectionality, enabling lamps to transmit data back to the central control, empowering proactive analysis and adjustments through software.

From a practical standpoint, DALI's adaptability shines, supporting up to 64 LED drivers on a single control cable. Integration into existing systems becomes seamless, setting DALI apart from conventional lighting protocols. It’s a quantum leap forward in lighting management, enabling enhanced efficiency and customization, all with the ease of two-way communication. As the lighting landscape evolves, DALI's digital finesse positions it as the go-to solution for the dynamic demands of modern illumination control.

How does DALI compare to KNX LON and BACnet?

Comparing DALI with KNX, LON, and BACnet in the realm of lighting control systems reveals distinct advantages that cater to today's growing demands for efficient building automation. These proprietary protocols serve as the foundation for seamless device communication, facilitating optimal performance across various industries. BACnet, an open protocol, flexibly automates diverse devices through its RS-485 data protocol, primarily finding utility in HVAC and beyond. Meanwhile, LonWorks, while slightly outdated, operates as an electric standard with applications in HVAC, transportation, fire detection, and lighting control. KNX, known for its flexibility and widespread European use, enables automation without the need for specific hardware modules.

However, DALI stands out as a specialized protocol solely designed for lighting applications. With its Digital Addressable Lighting Interface, DALI takes lighting control to new heights. Notably, DALI can integrate seamlessly with established protocols like BACnet and LonWorks, offering a distinct edge in lighting applications. This integration prowess, coupled with the availability of numerous DALI-compliant devices, positions DALI as the preferred protocol for lighting needs. As businesses and industries increasingly demand efficient lighting control, DALI's dedicated design caters perfectly to this niche requirement. It's evident that while KNX, LON, and BACnet excel in broader automation contexts, DALI's specificity and compatibility make it a powerful contender in the lighting control landscape.

Are all DALI Products Compatible With Each Other?

In the realm of the versatile DALI lighting control system, the question arises: Are all DALI products compatible with each other? The answer, in short, is affirmative. DALI products indeed showcase a high degree of compatibility, fostering seamless integration. However, exceptions do exist, primarily in certain functionalities like the "Night Light Functions." It's important to discern between devices labeled as "DALI Compatible" and those designated as "DALI Compliant."

When dealing with devices labeled as "Compatible," it's worth noting that these may encompass only partial DALI system components embedded by lighting equipment manufacturers. These components might not undergo comprehensive testing across DALI protocols, potentially leading to nuances in compatibility. This subtle distinction becomes more apparent when considering the devices classified as "Compliant." These devices bear the official DALI logo and boast comprehensive compatibility across a wide spectrum of operations. Manufactured by "DALI Member Companies," these compliant devices emerge as the optimal choice, ensuring a more harmonious and effective lighting control experience.

In the dynamic landscape of lighting control, understanding these nuances empowers consumers to make informed choices. The clarity between compatibility and compliance can make a significant difference in achieving a streamlined and efficient DALI-based lighting control system. Whether it's deciphering a DALI lighting control wiring diagram, assessing costs, exploring various lighting options like LED lights, strip lights, linear pendants, ceiling lights, spotlights, or even energy-efficient solutions like LED panel lights and tube lights, grasping the ins and outs of DALI compatibility enhances the effectiveness of lighting systems. So, while the overall answer remains a resounding "Yes," this deeper understanding ensures a brighter, more seamlessly connected lighting future for all.

The DALI Line in Modern Lighting Control Systems

The DALI lighting control system, a significant innovation in lighting technology, includes a critical component known as the DALI Line. With the capability to span up to 300 meters using a 1.5 mm squared twin cable, the DALI Line, also referred to as Digital Illumination Interface Alliance, serves as the backbone of this advanced lighting control approach. One of its remarkable features is the adherence to a maximum 2V drop for the communication signal, ensuring reliable data transmission across distances. This technology accommodates various wiring topologies, excluding rings and closed loops. Typically utilizing four or five wires—active, neutral, and two control wires—this system mandates an additional earth wire for single insulated devices.

A key consideration is the system's capacity, supporting up to 64 DALI-type devices within a single line. To maintain optimal functionality, each line necessitates its dedicated DALI power supply. Acting as a current limiter, this power supply safeguards against a current exceeding 250 mA along the line. Notably, adhering to the DALI standard protocol empowers the connection of multiple control systems on a single line, enhancing flexibility and scalability.

Modern lighting requirements demand efficiency, adaptability, and seamless control. The DALI lighting control system, underpinned by the robust DALI Line, emerges as a solution catering to these needs. As the world of lighting continues to embrace LED technology, encompassing LED lights, strip lights, panel lights, and more, the DALI system ensures intelligent and dynamic control. This system aligns with diverse architectural designs, from linear pendant lights to track lights, offering precise illumination tailored to any setting. It's worth noting that while the DALI lighting control system presents upfront costs, its long-term benefits in energy conservation and tailored lighting justify the investment.

In conclusion, the DALI Line stands as a testament to the evolution of lighting control systems. By integrating seamlessly into contemporary lighting designs and accommodating a spectrum of LED solutions, this technology enriches living and working environments alike. The simplicity of its wiring, scalability, and support for multiple control systems positions the DALI Line at the forefront of efficient and customizable lighting control solutions, illuminating spaces while being mindful of energy consumption and environmental impact.

Modern Lighting Control Systems

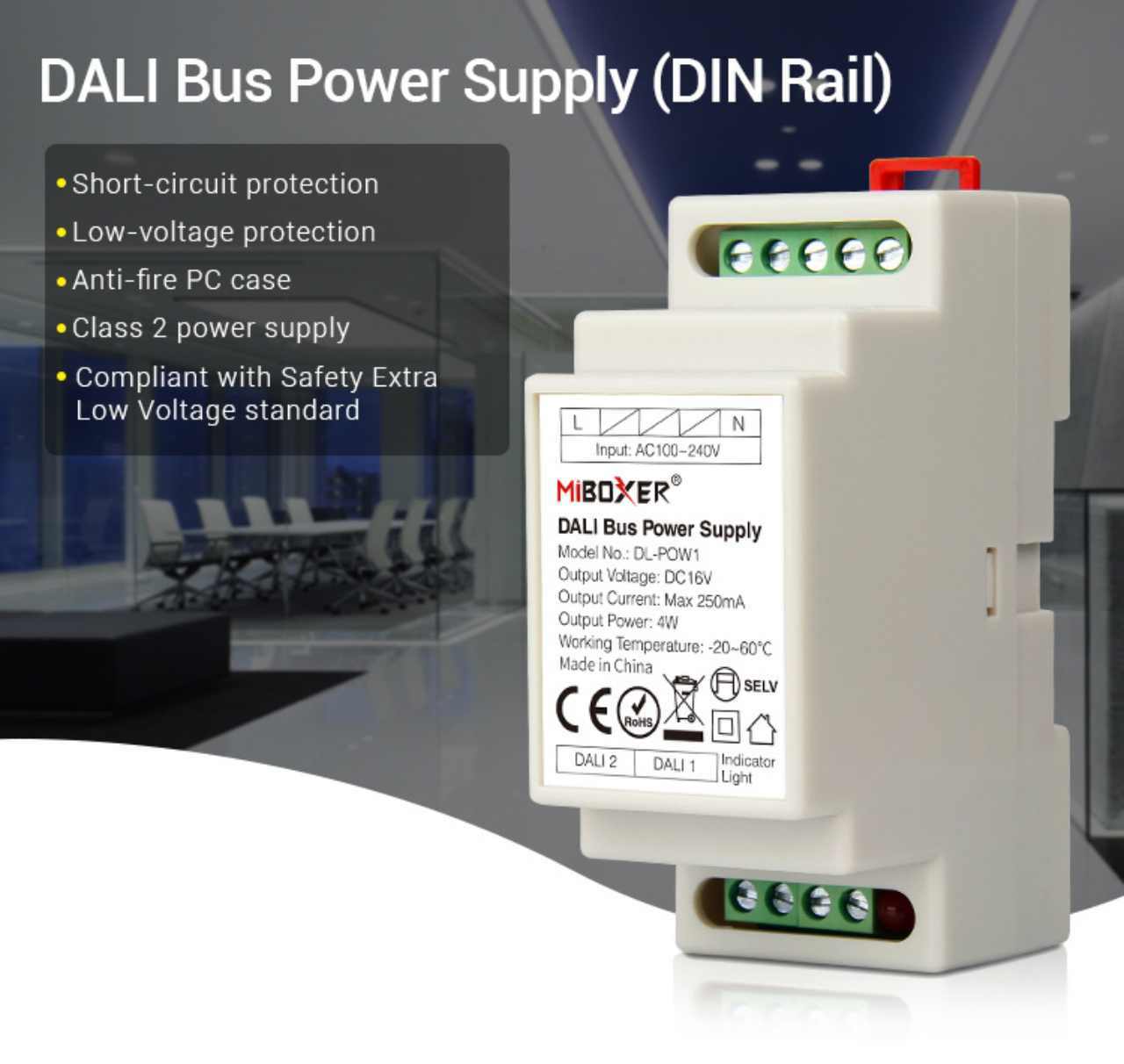

The DALI Power Supply

In the realm of modern lighting control systems, the DALI lighting control system stands as a remarkable advancement. At the heart of this innovation lies the essential component known as the "DALI Power Supply." This supply, strategically positionable along the wire's path, serves as the vital conduit for communication between DALI devices and the control unit. Activating the control system unites the control wires, facilitated by the power supply. Operating within a voltage range of 9.5 to 22.5 volts, the power supply ensures a seamless link when communication isn't active. This synergy empowers the broader DALI-based lighting control system, bringing precision and efficiency to illumination settings. The simplicity of DALI-2 wiring is notable, where an application controller bridges the gap between the DALI wire and the control unit. This new standard streamlines the configuration, aligning perfectly with the ethos of cutting-edge lighting control. From commercial spaces to residential abodes, understanding the significance of the DALI power supply fuels a comprehensive grasp of the versatile DALI lighting control system and its manifold benefits.

The DALI Power Supply

Guidelines for Wiring a DALI Driver in Your Dali Lighting Control System

Efficiently wiring a DALI driver within your Dali Lighting Control System is pivotal for seamless operation. Begin by configuring the amperage to ensure safety. A transparent wire should be incorporated, linking it to the driver. Follow this by connecting the neutral wire to the driver as well. It's crucial to integrate a connector bridge between the phase, driver, and push button. Note that the phase must be connected adjacent to the neutral wire, and it should also be linked to the push button on the socket. Integrate an output wire into the mix, acting as the control wire. Attach the final wire from the lighting fixture to the driver, and subsequently connect the circuit to a power supply.

These steps are vital in setting up the foundation for controlling your lighting through the advanced DALI driver technology. The Dali Lighting Control System, a cutting-edge system that capitalizes on DALI technology, enables enhanced lighting control. DALI, which stands for Digital Addressable Lighting Interface, facilitates nuanced and flexible control over lighting systems. From commercial spaces to residential environments, the Dali Lighting Control System offers unparalleled adaptability, allowing users to tailor lighting intensity and ambiance according to their preferences.

While configuring your DALI driver, it's crucial to consider the specifics of your lighting needs. The Dali Lighting Control System caters to a wide range of lighting options, including LED lights, LED strip lights, linear pendant lights, ceiling lights, spotlights, floodlights, and track lighting. This comprehensive system encompasses diverse scenarios, whether you're seeking sophisticated office illumination or cozy residential lighting. Furthermore, integrating DALI technology can result in energy efficiency, cost savings, and reduced environmental impact. It's worth noting that DALI lighting control systems offer a smart solution, enabling users to fine-tune their lighting setup for optimal functionality and aesthetics.

In conclusion, mastering the process of wiring a DALI driver is a key step in harnessing the potential of your Dali Lighting Control System. The simplicity of these instructions ensures that users with various levels of technical expertise can confidently set up their lighting system. By seamlessly integrating a DALI driver, you gain access to a realm of lighting control possibilities, all at your fingertips. Experience the power of cutting-edge DALI technology and embark on a journey towards efficient, adaptable, and captivating lighting control.
