How to Wire LED Strip Lights(the Ultimate Guide)

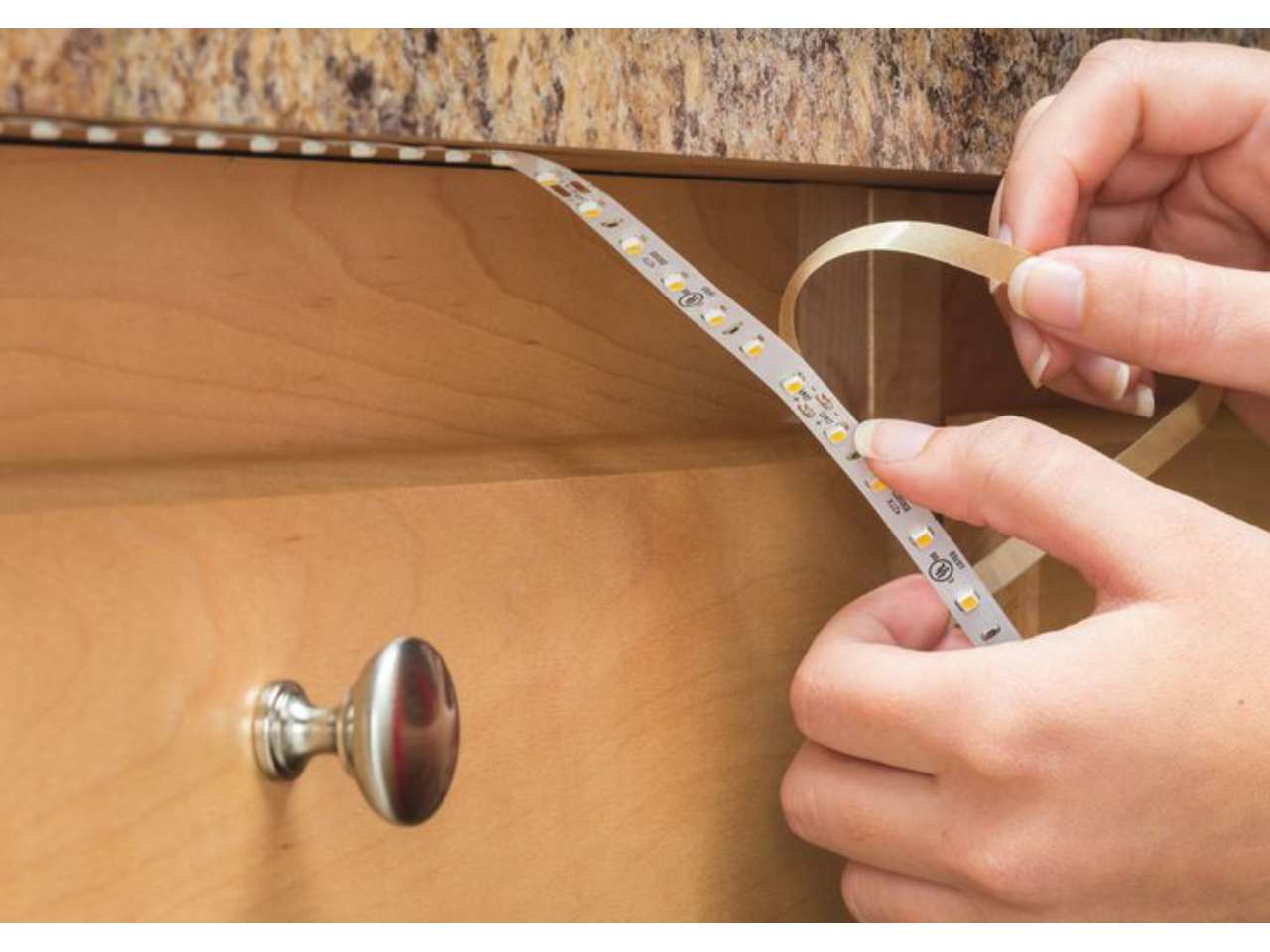

How to Wire LED Strip Lights 31

LED strip lights have surged in popularity across diverse settings due to their contemporary aesthetic and easy installation process. This comprehensive guide delves into the art of wiring various types of LED strips, catering to a wide array of preferences: single color, tunable white, RGB, RGBW, RGBCCT, and addressable LED strips. The central aim is to illuminate the intricacies of wiring while shedding light on crucial concepts like voltage drop and parallel connections. This article serves as a beacon for those looking to amplify their spaces with LED strip lights, offering insights tailored to the UK audience. Whether you're a novice seeking elementary-level comprehension or an experienced enthusiast aiming for a deeper grasp, this guide simplifies the complexities of LED strip light installation, empowering you to curate captivating lighting experiences.

Voltage Drop in LED Strip Lights

Voltage drop in LED strip lights occurs when the power supply's voltage is drawn by the PCB and wires, leading to uneven brightness along the strip. This can result in the section near the power source appearing brighter than the farther end. To ensure consistent brightness, it's crucial to address this issue. One effective solution is connecting multiple LED strips parallelly to the power supply rather than in a series. Additionally, opting for ultra-long constant current LED strips can mitigate the voltage drop problem. This approach maintains uniform brightness throughout the strip. For a more comprehensive understanding of LED strip voltage drop and its implications, you can explore our article on "What is LED strip voltage drop?" By applying these techniques, you can enhance your LED strip lights' performance and achieve a uniform and appealing lighting experience.


Parallel Connection for LED Strip Lights

When it comes to effectively powering LED strip lights, a parallel connection proves to be the smart choice, addressing voltage drop concerns and ensuring consistent illumination. This method involves linking multiple LED strips together by connecting them in parallel to a single power source, controller, or amplifier. Unlike the problematic series connection, where strips are chained end-to-end, parallel connection maintains uniform brightness and avoids uneven lighting. To achieve this, you can either link both ends of the LED strip to the same power source or connect various strips to separate power sources while maintaining the same voltage across all of them. This approach guarantees that all your LED strip lights shine brilliantly without any dim spots. Remember, the keyword for your SEO needs, "LED strip lights," is naturally woven into this concise and informative explanation, making it easier for readers in the UK to grasp and implement the best practices for their LED lighting setups.

PWM Amplifier for LED Strip Lights

LED strip lights have become a popular choice for illuminating various spaces due to their energy efficiency and versatility. To ensure optimal performance, LED controllers emit a Pulse Width Modulation (PWM) signal that controls the brightness of the LEDs. However, there are instances when the output power of an LED controller might fall short, preventing it from driving a sufficient number of LED strips effectively. This is where a PWM amplifier comes into play. A PWM amplifier acts as a power booster, enhancing the PWM signal's power output. By integrating a PWM amplifier into the setup, the LED controller gains the ability to drive a larger number of LED strips without compromising brightness or performance. This becomes especially relevant when lighting larger areas or when using LED strip profiles, such as aluminum profiles, linear pendants, ceiling lights, or track lights, which demand a higher power output for consistent illumination. In summary, a PWM amplifier is a valuable tool that ensures LED strip lights deliver their full potential in various lighting applications, providing an enhanced and enjoyable lighting experience for a range of spaces.

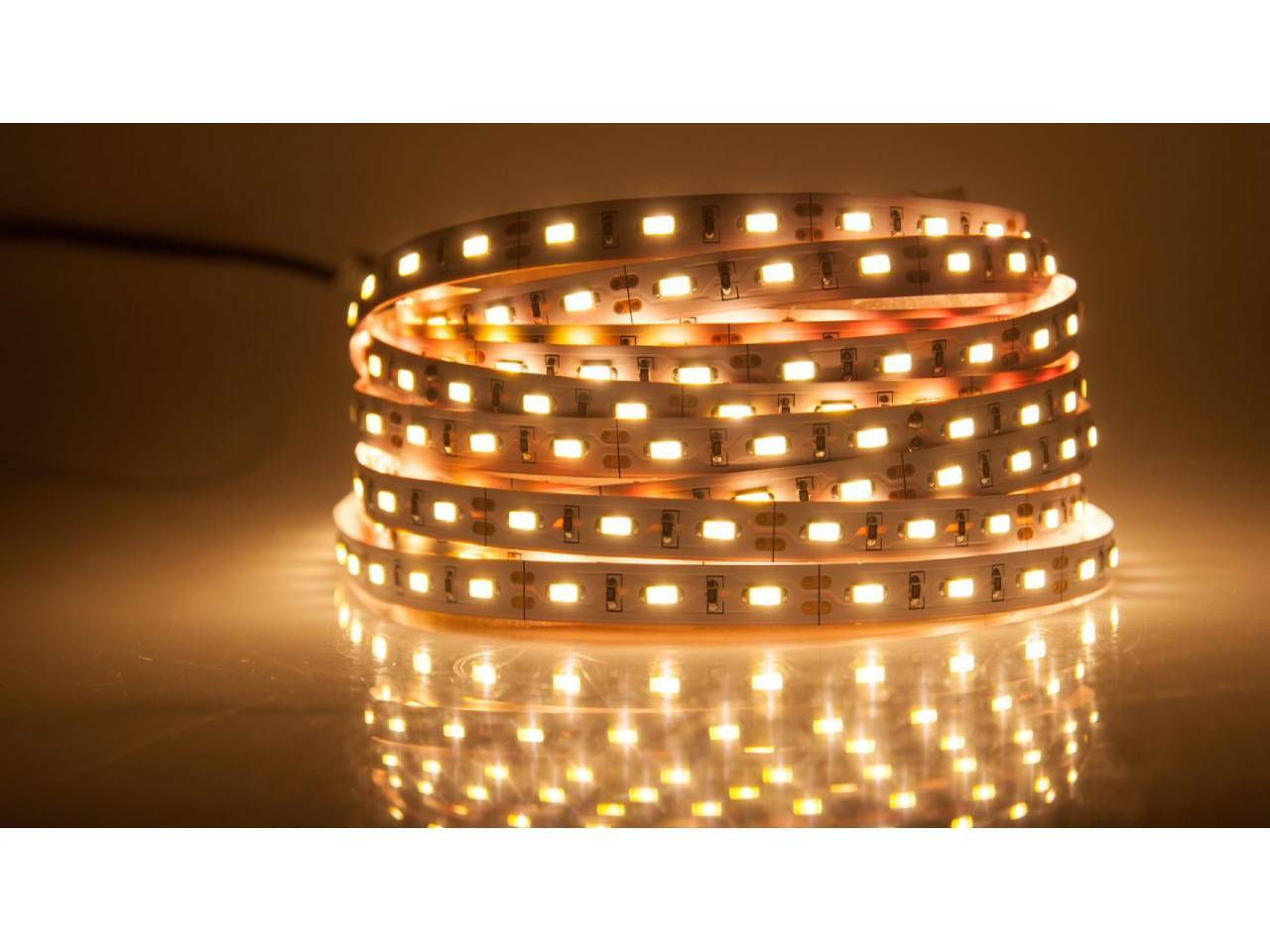

the brightest led strip lights

How to Wire Single Color LED Strip Lights

Wiring single color LED strip lights is a straightforward process that brings vibrant illumination to your spaces. These mono LED strips, with just two wires, emit light in a specific color, making them ideal for various applications. Let's explore how to wire them efficiently.

Wiring with Non-Dimmable LED Drivers

The simplest setup involves connecting a single-color LED strip directly to a non-dimmable power source without a controller. Remember, the total LED strip power shouldn't exceed 80% of the power supply capacity, adhering to the 80% power principle for safety.

Wiring with Dimmable LED Drivers

When you need adjustable brightness, a dimmable power supply comes into play. Dimming methods like 0-10V, Triac, and DALI offer versatile control over your LED strip's intensity.

0-10V Dimmable LED Drivers

Utilizing a 0-10V dimmable LED driver allows you to smoothly adjust the LED strip's brightness. This method involves a straightforward connection for gradual illumination control.

Triac Dimmable LED Drivers

Triac dimming, commonly used in homes, connects the LED strip to a Triac dimmable driver. This enables seamless brightness adjustments with familiar wall dimmer switches.

DALI Dimmable LED Drivers

DALI dimming introduces advanced control to commercial setups. Linking the LED strip to a DALI dimmable driver empowers precise and programmable illumination management.

Wiring with LED Controllers

Enhance your lighting experience by connecting single-color LED strips to controllers for flexible brightness adjustments.

Without PWM Amplifier

For smaller setups, where only a few LED strips are controlled, an LED amplifier isn't necessary. Directly connect the strip to the controller for hassle-free operation.

With PWM Amplifier

In more extensive lighting projects requiring multiple LED strips, LED amplifiers play a role. These amplifiers ensure consistent and uniform brightness across all connected strips.

Wiring with DMX512 Decoder

For sophisticated setups, consider a DMX512 decoder. This professional solution allows intricate control over large LED installations, making it a favorite in event and entertainment industries.

By following these simple yet effective wiring methods, you can harness the full potential of single color LED strip lights. Whether you're aiming for ambient lighting or dynamic visual effects, these wiring techniques cater to your lighting needs. Enjoy the perfect blend of simplicity and creativity as you illuminate your surroundings with LED strip lights.

Wiring Tunable White LED Strip Lights

Discover the ins and outs of wiring tunable white LED strip lights, also known as CCT adjustable LED strip lights, in this comprehensive guide. These innovative LED strip lights offer versatility by incorporating two different color temperature LEDs, allowing you to fine-tune the lighting according to your preference. With a focus on simplicity, this guide breaks down the process into various methods, ensuring you can easily set up your LED strip lights for optimal illumination.

Dimmable LED Drivers:

Usually, dimmable power supplies are associated with adjusting single-color LED strips. However, enter DALI with the DT8 protocol – a game-changer. This protocol broadens the horizon, supporting not just tunable white, but also RGB, RGBW, and RGBCCT LED strip lights. It's a promising leap towards dynamic lighting solutions.

DALI DT8 Tunable White LED Driver:

For an advanced approach, consider the DALI DT8 tunable white LED driver. This sophisticated driver integrates seamlessly, enabling precise control over the color temperature of your LED strip lights. Embrace the potential of your lighting design with this intelligent solution.

LED Controllers and PWM Amplifiers:

For smaller setups, a tunable white LED controller is your go-to, providing straightforward control over the color temperature. However, when dealing with a larger number of adjustable color temperature LED strips, a PWM amplifier steps in. It ensures consistent and reliable performance, maintaining the desired lighting effect across all your strips.

DMX512 Decoder for Tunable White:

While dedicated DMX512 decoders for adjustable color temperature LED strips may be scarce, a workaround exists. Leverage the versatility of 3-channel or 4-channel output DMX512 decoders to effectively manage your tunable white LED strip lights. This adaptability showcases the resilience of modern lighting systems.

2-Wire Tunable White LED Strip Lights:

Discover the streamlined elegance of 2-wire adjustable color temperature LED strips. Perfect for narrower spaces, these strips retain the same tunable white capabilities while accommodating constrained environments. Unlock new design possibilities with this compact lighting solution.

Incorporating tunable white LED strip lights into your space is now more accessible than ever. From dimmable LED drivers to advanced DALI solutions, LED controllers, and inventive 2-wire designs, the possibilities are limitless. Whether you're looking to enhance your ambiance or elevate your interior design, these methods provide a roadmap to achieve your desired lighting outcomes. For more in-depth insights and practical implementation, don't hesitate to explore further resources. Upgrade your lighting game with the power of tunable white LED strip lights.

How to Wire RGB LED Strip Lights

In the realm of LED strip lights, the RGB variety holds a vibrant allure. These lights feature four essential wires: the common anode, along with the dedicated Red (R), Green (G), and Blue (B) wires. This quartet of wires paves the way for a spectrum of colors to illuminate your space. When it comes to connecting RGB LED strip lights, two primary options take the stage: utilizing LED controllers or embracing DALI DT8 dimmable drivers.

Wiring RGB LED Strip Lights with Dimmable LED Drivers

For those seeking advanced control and adaptability, the DALI DT8 RGB LED driver offers a pathway. This driver aligns perfectly with RGB LED strips, enabling seamless integration into DALI lighting systems. This modern approach ensures not only the freedom to tweak colors but also the power to adjust brightness levels, all through a DALI control interface.

Wiring RGB LED Strip Lights with LED Controllers

A cornerstone of LED illumination, the LED controller reigns supreme. The process unveils various methods for wiring RGB LED strips, all in pursuit of personalized radiance.

  • Without PWM Amplifier: In scenarios where simplicity meets function, direct wiring to an LED controller suffices. This method delivers a straightforward means of cycling through colors and basic lighting adjustments.

  • With PWM Amplifier: To elevate your LED strip experience, a PWM (Pulse Width Modulation) amplifier takes the spotlight. This addition enhances color depth and allows for smoother transitions, akin to a symphony of hues dancing at your fingertips.

Wiring RGB LED Strip Lights with DMX512 Decoder

For those engrossed in more intricate lighting setups, the DMX512 decoder steps onto the stage. By employing the DMX protocol, these decoders enable synchronizing multiple RGB LED strips with a broader lighting network. This approach thrives in settings where coordination and synchronization are paramount.

In conclusion, delving into the world of RGB LED strip lights is a journey of creativity and technical prowess. Whether aligning with versatile dimmable LED drivers or riding the waves of LED controllers, your space can transform into a canvas of dynamic, customizable luminosity. With a nod to evolving technologies and methods, the path to wiring RGB LED strip lights is now more accessible and illuminating than ever.

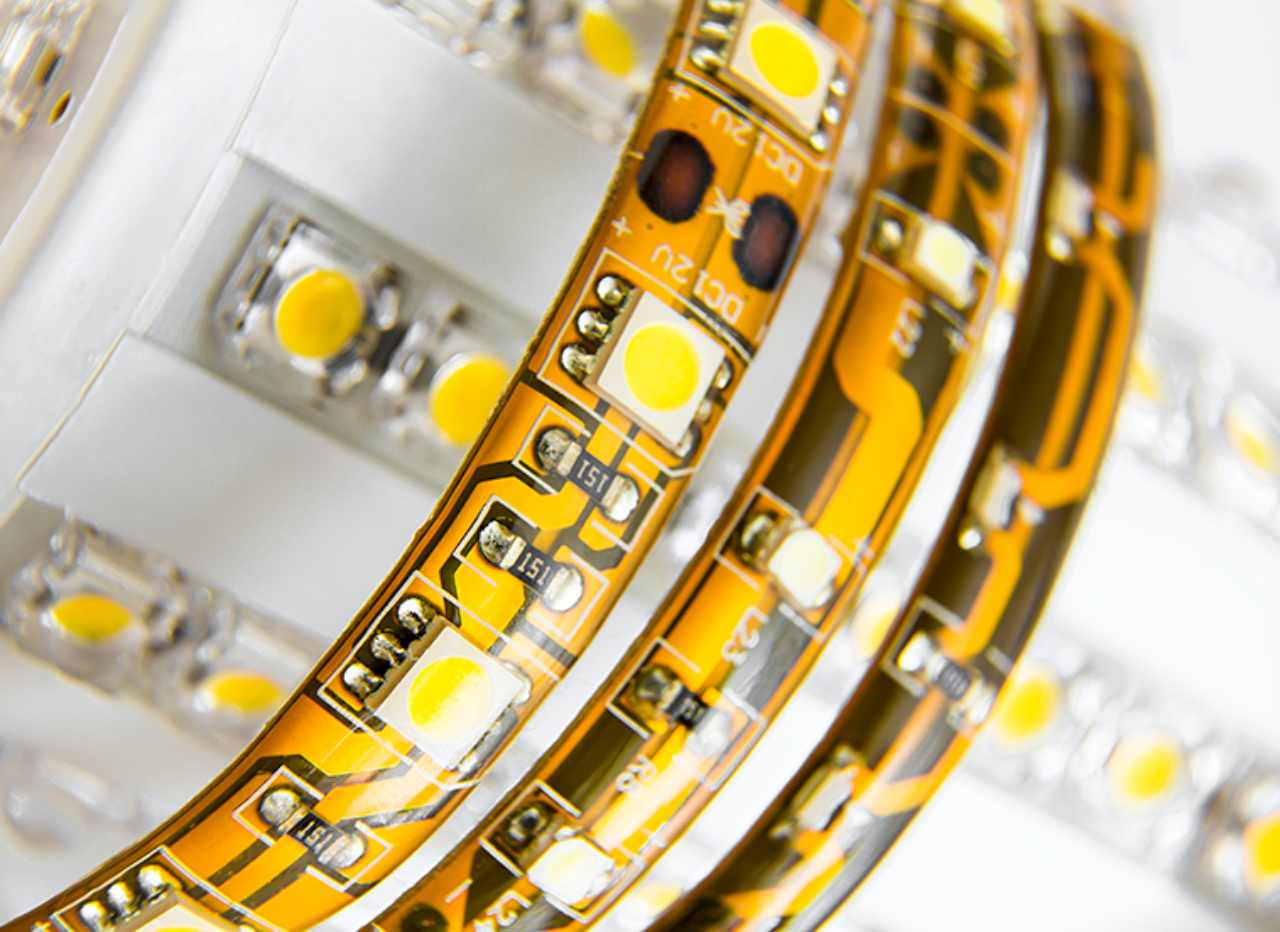

LED Tape3

How to Wire RGBW LED Strip Lights

When it comes to illuminating spaces with LED strip lights, understanding the intricacies of wiring RGBW (Red, Green, Blue, White) LED strip lights is essential for achieving the desired ambiance. To ensure a comprehensive guide, this article will explore different methods for wiring RGBW LED strip lights with various dimmable LED drivers and controllers, catering to different preferences and needs.

1. Wiring with Dimmable LED Drivers:

Dimmable LED drivers play a pivotal role in controlling the brightness of your LED strip lights. For RGBW LED strips, using DALI DT8 RGBW LED drivers allows for precise and seamless dimming control. These drivers adhere to the DALI (Digital Addressable Lighting Interface) protocol, offering advanced options to tailor your lighting atmosphere.

2. Wiring with LED Controllers:

LED controllers are key for managing the color and effects of RGBW LED strip lights. There are two main options to consider: using an LED controller with or without a PWM (Pulse Width Modulation) amplifier.

a. Without PWM Amplifier: For basic color and brightness adjustments, connecting your RGBW LED strip lights directly to an LED controller can suffice. This simpler approach is suitable for scenarios where straightforward color changes are desired.

b. With PWM Amplifier: If you're aiming for more dynamic lighting effects and smoother color transitions, incorporating a PWM amplifier into the setup is recommended. This amplifier refines the signal to enhance color accuracy and reduce flickering, resulting in a more visually appealing experience.

3. Wiring with DMX512 Decoder:

For more complex lighting installations, such as those in large events or entertainment settings, integrating a DMX512 decoder can provide sophisticated control over RGBW LED strip lights. This standard protocol allows precise synchronization and coordination of multiple lighting fixtures, enabling captivating lighting displays.

Incorporating the principles outlined above, wiring RGBW LED strip lights becomes an approachable task. From utilizing dimmable LED drivers like DALI DT8 to harnessing the potential of LED controllers with or without PWM amplifiers, and even exploring the realm of DMX512 decoders for intricate setups, you now have a comprehensive grasp on how to wire RGBW LED strip lights. Whether you're aiming to create ambient residential lighting or dynamic event atmospheres, this guide equips you with the knowledge to achieve your desired lighting effects using LED strip lights.

How to wire RGBCCT LED strip lights

Wiring RGBCCT LED strip lights involves a systematic process that enhances your lighting setup with vibrant color options. These versatile LED strip lights offer a blend of Red, Green, Blue, Cool White, and Warm White LEDs, allowing for a wide spectrum of lighting possibilities. To achieve the best results, it's crucial to understand the wiring techniques. You can wire these lights using different methods, each with its advantages. For instance, when working with dimmable LED drivers, such as DALI DT8 RGBW LED drivers, you can finely control the intensity and color temperature of the LED strip lights. Another approach involves using LED controllers, either with or without PWM amplifiers, granting you control over color dynamics and brightness. For more advanced setups, DMX512 decoders offer a sophisticated solution, commonly used in professional lighting applications. As you embark on this wiring journey, remember that proper understanding of these methods will help you make the most of your LED strip lights, transforming your space with mesmerizing LED illumination.

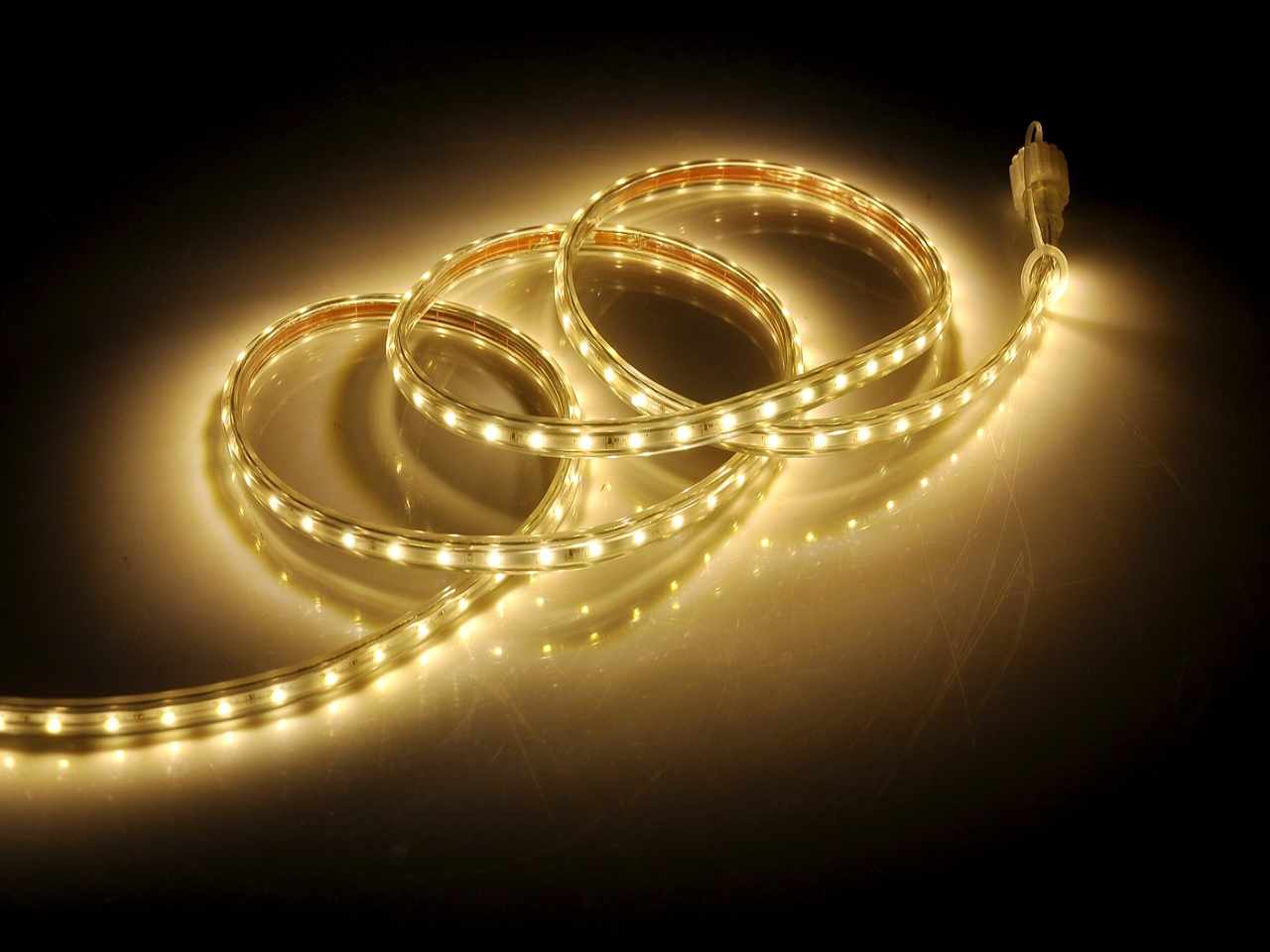

led strip light 1

How to Wire Addressable LED Strip Lights

Addressable LED strip lights, often referred to as digital LED strips, pixel LED strips, magic LED strips, or dream color LED strips, are an exciting innovation that offers unparalleled control over your lighting setup. Unlike traditional LED strips, addressable strips feature built-in control ICs that allow you to manipulate individual LEDs or groups of LEDs independently. This individualized control gives rise to the term 'addressable', as you can precisely target specific segments of the strip. To delve deeper into this captivating technology, you can refer to "The Ultimate Guide to Addressable LED Strips."

When it comes to wiring addressable LED strips, there are various methods, each catering to different communication interfaces. One of these methods involves using the Serial Peripheral Interface (SPI), a widely used synchronous serial communication interface primarily employed in embedded systems. This interface, established by Motorola in the 1980s, has evolved into a standard for various applications, including Secure Digital cards and liquid crystal displays.

The SPI addressable LED strip directly receives SPI signals, utilizing them to dictate color changes and brightness adjustments. Depending on your requirements, you can opt for SPI addressable LED strips with data channels only, data and clock channels, or even data and backup data channels for added redundancy and reliability.

Another wiring approach involves the DMX512 communication protocol. In this case, the DMX512 addressable LED strip can directly receive DMX512 signals without the need for an external decoder. This type of LED strip responds to the incoming signal by altering the color and brightness of the emitted light. Before using the DMX512 addressable LED strip, you'll need to set the DMX512 address, a one-time configuration step that ensures proper communication.

In essence, the advancements in addressable LED strip lighting empower you with unmatched control and creativity in illuminating your spaces. The ability to target specific LEDs or groups thereof allows for intricate lighting effects and dynamic displays. Whether you're an enthusiast seeking to enhance your living space or a professional orchestrating intricate lighting setups, addressing your LED strip lights opens up a world of possibilities.
