How to Wire A Light Switch(The Ultimate Guide)

How to Wire A Light Switch

Wiring a Light Switch

When it comes to the task of wiring a light switch, it's essential to first determine whether you're dealing with a 'one-way' or 'two-way' circuit. In a 'one-way' setup, a single light switch controls a single light fixture, while 'two-way' configurations involve two switches operating the same light. The type of light switch also matters; you may encounter 'one-gang' switches with a single switch on the plate or 'two-gang' and higher configurations with multiple switches. For a basic overview, let's focus on wiring a one-gang light switch within a one-way circuit. The Switched Live Wire (SW) should be connected to the L1 port, while the Common Live Wire (CW) should be connected to the Common port. Additionally, ensure that the Earth Wire is properly connected to the switch plate/back box Earth ports. Keep in mind that multi-gang switches and two-way circuits require additional considerations. Understanding these fundamentals is the first step to successfully wiring a light switch, ensuring you have control over your lighting.

How to Wire a Light Switch (One-Way)

To begin, let's demystify the one-way light switch. If you're dealing with a single switch controlling a light, you're on the right track. When it comes to replacing a faulty switch, you'll encounter two common types: those secured with screws and the 'plug-in' style with push-button release mechanisms. For reliability, opt for the screw-type switch. Now, let's walk through the process step by step.

Step 1: Power Down

Safety first. Identify the lighting circuit and turn off the power supply. In modern homes, you'll find the MCB (miniature circuit breaker) in the consumer unit. For larger establishments like offices or schools, turning off the correct fuse at the panel during non-operational hours might be necessary. Always use a voltage tester to confirm there's no live current.

Step 2: Remove the Existing Switch Plate

Unscrew the switch plate, gently pull it towards you, and examine the wires. Note that there can be up to three wires connected. If the switch was working fine before, simply replicate the wiring layout in the replacement plate. Remember to use a voltage tester before disconnecting any wires.

Step 3: Identify Wires and Wire Ports

In case you don't have a reference for the wiring layout, rely on wire colors and labels. Common Live wires are typically brown, Switched Live wires are blue, and Earth wires are green and yellow. If the wires have insulation, strip up to ½ inch using a wire stripper to expose the wire beneath.

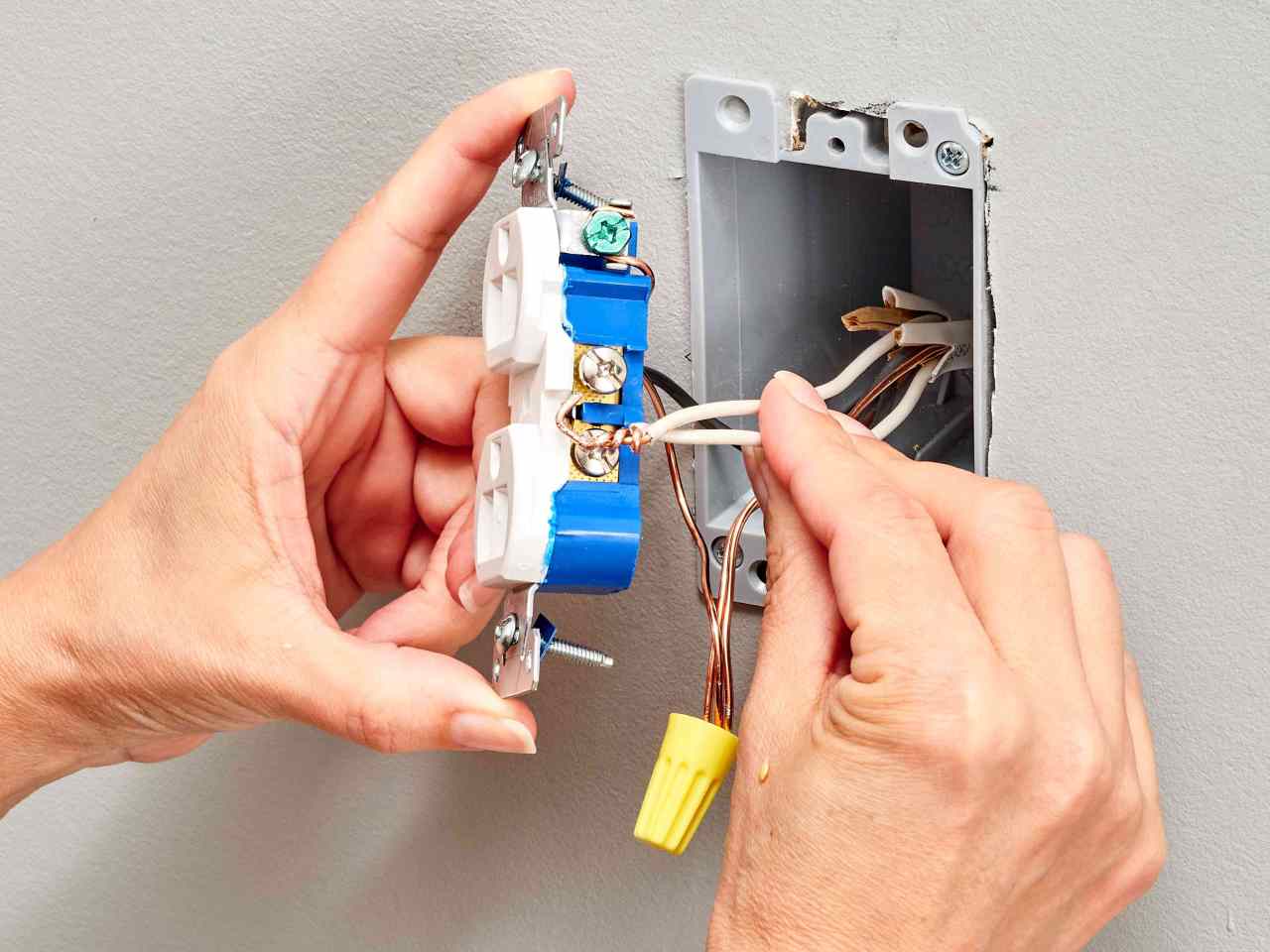

Step 4: Wiring the Switch Plate

Now, examine the new switch plate. Look for terminals labeled 'Common' and 'L1' (some switches may have an additional L2 port, which is used in two-way circuits). Here's how to connect the wires:

  • Connect the blue wire (Switched Live) to the L1 port.
  • Connect the brown wire (Common Live) to the Common port.
  • Connect the Earth wire to Earth terminals in both the back box and switch plate. Please note that Earth terminals are found only in metal switch plates and back boxes.

If you're dealing with plastic switch plates and back boxes, the Earth wire can be terminated inside the wire's protective insulation sleeve and folded over. If both the back box and switch plate are metal, connect the Earth wire to the Earth terminal in the metal back box, and use a separate piece of wire to link the Earth terminals on both metal components.

By following these steps, you can confidently wire a one-way light switch. This guide ensures safety and proper functionality. Remember to always prioritize safety, and if you're unsure, consult a professional electrician for assistance.
