How to Power WS2812B LED Strip: Get the Magic of Colors Safely!

how to power ws2812b led strip

The WS2812B LED strip stands out for its ability to create vibrant and dynamic light displays, offering precise control over colors and patterns. This article delves into the intricacies of powering and utilizing this popular LED strip, addressing common questions and challenges that users may encounter. From understanding the electrical requirements to ensuring safe and efficient operation, the content provides valuable insights and practical guidance. Whether you are a hobbyist experimenting with DIY projects or a professional seeking reliable lighting solutions, this article is designed to enhance your knowledge and skills, helping you reap the full benefits of the WS2812B LED strip. Get ready to explore the world of smart LED lighting, and discover how to bring your creative visions to life with confidence and ease.

Understanding the Basics of Powering WS2812B

The WS2812B LED strip, often referred to as an “individually addressable” or “smart” LED strip, is a type of led lights that has gained immense popularity among hobbyists and professionals alike due to its ability to display a wide range of colors and patterns with precise control. Powering this LED strip, similar to other lighting solutions like track lighting, requires a nuanced understanding of its electrical requirements to ensure its efficient and safe operation.

1. Powering the WS2812B LED Strip: The WS2812B LED strip operates at a voltage of 5V. Each RGB LED on the strip consists of three individual LEDs (Red, Green, and Blue), and each of these draws around 20mA when at full brightness. This means that a single RGB LED draws a total current of approximately 60mA at full brightness. It’s crucial to note that when powering the strip using an Arduino via USB, the 5V pin can handle only around 400 mA. If powered using an external power source, the 5V pin can manage up to 900 mA. If the LED strip’s total current requirement exceeds these limits, an external power supply becomes essential.

2. Calculating Power Requirements: To determine the power needs of the WS2812B LED strip, one must consider both the number of LEDs and their brightness. For instance, a strip with 20 LEDs at full brightness would require a current of 20 LEDs x 60mA = 1.2A. Always ensure that the power supply can provide a slightly higher current than the calculated requirement to account for any unforeseen spikes or variations.

3. Choosing the Right Power Supply: Whether you’re working with WS2812B or a led profile, Once the power requirements are calculated, selecting an appropriate power supply becomes crucial. For strips that draw a higher current than what an Arduino can provide, an external 5V power supply is recommended. Additionally, it’s advisable to connect a 100uF capacitor across the power supply’s 5V and Ground terminals to stabilize the voltage and reduce potential power spikes.


  • Always ensure that the ground of the Arduino and the external power supply are connected, especially when both are used simultaneously.
  • It’s recommended to use a 330 Ohms resistor between the Arduino’s data pin and the LED strip’s data input to reduce noise and protect the strip.
  • The WS2812B LEDs can be controlled using just a single pin from the Arduino, making them highly efficient and versatile for various projects.

Having worked with WS2812B LED strips on multiple projects, I can attest to their versatility and visual appeal. However, it’s essential to approach the powering aspect with caution. A common mistake I’ve seen is underestimating the strip’s total current draw, leading to flickering LEDs or, in some cases, damaging the strip. Always ensure you have a power supply that can comfortably handle the strip’s requirements, and consider adding safety components like capacitors and resistors to ensure a smooth and safe operation.

Safe and Efficient Wiring for WS2812B

Proper wiring of the WS2812B LED strip and linear lighting is essential to ensure both safety and optimal performance. When dealing with electronics, especially those that draw power like LED strips, it’s crucial to understand the intricacies of the components and how they interact. Let’s delve into the specifics:

1. Wire Gauge Selection:
The wire gauge is pivotal, especially when dealing with high currents. The WS2812B LED strip, when fully lit, can draw significant current. For instance, each LED at full brightness can consume around 60mA (20mA for each of Red, Green, and Blue). If you’re using a strip with multiple LEDs, the current requirement can add up quickly. Therefore, choosing the right wire gauge ensures that the wire can handle the current without overheating.

2. Connection Techniques:
Making secure connections is vital for the longevity and safety of your setup. The articles suggest two primary methods:

  • Soldering: This provides a robust and long-lasting connection. However, it requires some skill and the right equipment.
  • Using Connectors: For those less confident in their soldering abilities, connectors offer an easier, albeit sometimes less durable, solution.

3. Importance of Capacitors and Resistors:
Capacitors and resistors play a crucial role in the WS2812B setup:

  • Capacitors: These are used to smooth out the power supply. A capacitor of around 100uF across the 5V and Ground is recommended. This ensures that any sudden changes in power demand from the LEDs don’t cause harmful voltage spikes or drops.
  • Resistors: A resistor of around 330 Ohms between the Arduino and the LED strip data pin can reduce noise on that line, ensuring a clearer signal and reducing the chance of flickering or color inaccuracies.

From personal experience, while WS2812B LEDs are user-friendly and versatile, they can be sensitive to voltage fluctuations. Always ensure that your power supply is stable. If you’re new to this, start with a smaller setup and scale up as you become more comfortable. Remember, the goal is to create a visually appealing light display without compromising on safety.

While the WS2812B LED strip offers a world of possibilities for lighting projects, it’s essential to approach the setup with care and knowledge. Proper wiring and understanding of the components will ensure that your project is both safe and effective.

how to power ws2812b led strip

Integrating WS2812B with Arduino

Arduino boards provide a versatile and user-friendly platform for controlling WS2812B LED strips and led panel light, popular among DIY enthusiasts for creating customizable lighting effects. This section will guide you through the process of integrating WS2812B LED strips with Arduino, covering the basic setup, programming, and showcasing advanced projects to inspire your own creations.

Basic Setup and Connection

To start, you’ll need an Arduino board, a WS2812B LED strip, and a power source. The LED strip and led tube light should be connected to the Arduino board following the manufacturer’s guidelines, ensuring proper alignment of the data input and power pins. A common mistake is to connect the LED strip in the wrong direction; make sure to check the arrow on the strip indicating the data flow direction.

When powering the WS2812B LED strip, it’s crucial to provide a sufficient and stable power source. A user on Electronics Stack Exchange shared their experience of using a 5V, 10A power supply for a 2-meter strip with 144 LEDs/m, aiming for 40% brightness to reduce the current requirement to around 7A. Ensure your wiring is capable of handling the current; for instance, 22 AWG wires might be insufficient, and you might need to upgrade to 16 or 14 AWG wires. Pay attention to the connections, and ensure all components, including any barrel jack adapters, can handle the required current.

Programming the Arduino for WS2812B

Arduino provides a rich set of libraries for controlling WS2812B LEDs, with FastLED being one of the most popular. It offers extensive functionality for creating lighting effects and animations. You can start with basic examples to understand how to control individual LEDs and then move on to more complex animations.

Advanced Projects and Applications

The versatility of WS2812B led strip lights and led strip lights for stairsopens up a world of possibilities for advanced projects and applications. One such project is the interactive LED coffee table mentioned in the HowToMechatronics tutorial. This project combines WS2812B LEDs with infrared proximity sensors and a Bluetooth module, allowing you to control the lighting effects interactively.

Integrating WS2812B LED strips and led light strips for bedroom with Arduino is not just about following instructions; it’s an opportunity to unleash your creativity and learn about electronics and programming. The process might seem daunting at first, especially when dealing with power requirements and complex wiring. However, the abundance of resources, tutorials, and the supportive Arduino community make it an accessible and rewarding endeavor.

Remember, the key to a successful integration is attention to detail, especially regarding wiring and power requirements. Don’t rush the process; take your time to understand how everything works, and don’t hesitate to seek help if needed. With patience and practice, you’ll be able to create stunning lighting effects and bring your creative ideas to life.

how to power ws2812b led strip
how to power ws2812b led strip

Troubleshooting and Safety Tips

Ensuring the safety and longevity of your WS2812B LED strip and spot lighting bar setup requires awareness of potential issues and how to address them. Here’s a comprehensive guide to help you navigate through common challenges:

Addressing Overheating Issues

Overheating is a common issue with LED strips, especially when they are operated at their maximum brightness for extended periods.

  • Causes: Overheating can be caused by inadequate power supply, running the strip at full brightness for prolonged periods, or poor heat dissipation.
  • Solutions:
    • Ensure you have the right power supply for your setup. For instance, a 60 LED/meter WS2812B strip can draw up to 3.6A per meter at full brightness1.
    • Use heat sinks or metal strips to dissipate heat effectively.
    • Avoid enclosing the LED strip in airtight spaces; ensure there’s adequate ventilation.
    • Reduce the brightness or use the LEDs intermittently.

Ensuring Even Brightness Across the Strip

Uneven brightness can be a result of voltage drops, especially in longer LED strips.

  • Causes: Voltage drops can occur due to resistance in the strip, leading to dimmer LEDs towards the end of the strip.
  • Solutions:
    • Power the strip from both ends or use a thicker wire to reduce resistance2.
    • Consider using a logic level shifter if you’re controlling the strip with an Arduino or similar microcontroller3.
    • Regularly inspect the strip for damaged sections and replace them promptly.

Safety Precautions for High Current Setups

High current setups, especially those exceeding 5V and 10A, can pose safety risks if not handled correctly.

  • Guidelines:
    • Always ensure proper grounding to prevent electrical shocks4.
    • Use fuses to protect against overcurrent situations.
    • Avoid daisy-chaining multiple LED strips. Instead, power them separately to ensure even distribution of current.
    • Regularly inspect wires for wear and tear and replace them if needed.

From my experience, while WS2812B LED strips are versatile and offer vibrant colors, they can be sensitive to voltage fluctuations. It’s essential to invest in a quality power supply and regularly inspect your setup. Remember, safety first! Taking precautions can save you from potential hazards and prolong the life of your LED strip.

how to power ws2812b led strip
how to power ws2812b led strip

How Kosoom Goes Above and Beyond in Assisting with WS2812B LED Strip Queries

When it comes to understanding the intricacies of LED lighting, particularly the WS2812B LED strip, Kosoom stands out as a beacon of expertise and customer-centric service. Here’s how Kosoom distinguishes itself from other brands in assisting you with any question or problem you might have regarding the WS2812B LED strip:

  1. Deep-rooted Expertise: With two decades of experience in the lighting industry, Kosoom has honed its expertise, ensuring that every query is addressed with precision and depth. The article on “how to power ws2812b led strip” on the Kosoom UK website is a testament to this, offering a comprehensive guide from understanding the basics of powering the WS2812B to troubleshooting and safety tips.
  2. Cost-effective Solutions: Kosoom’s robust supply chain and in-house production capabilities mean that not only do you get top-notch products, but you also receive them at a fraction of the market price. This cost-effectiveness extends to our guidance and solutions, ensuring you get the best value for your investment.
  3. Local Presence: With physical stores across Europe and a built-in warehouse in Milan, Kosoom ensures that any product-related query or issue is addressed promptly. This local presence translates to faster response times and solutions tailored to European standards and requirements.
  4. Holistic Online and Offline Support: Whether you prefer to visit one of our physical stores or browse our multiple official websites, Kosoom ensures a seamless experience. Our strategic approach of combining both online and offline presence means you can access our expertise and solutions from anywhere.
  5. Safety and Certification: Safety is paramount when dealing with electrical components. Kosoom’s products, including the WS2812B LED strip, come with all necessary European certifications. Moreover, our 5-year warranty is a testament to our confidence in the quality and durability of our products.
  6. Tailored Solutions: Unlike other brands that might charge for lighting solutions, Kosoom provides them for free in Europe. This means that if you’re unsure about how to best power your WS2812B LED strip or any other related query, Kosoom is here to assist without any additional charges.
  7. Empowering the Community: The detailed article on the Kosoom UK website is just one example of how we aim to empower our customers with knowledge. By providing insights, safety precautions, and even advanced project ideas, we ensure that you’re equipped to make the most of your WS2812B LED strip.

Kosoom’s commitment to excellence, combined with its deep-rooted expertise and customer-centric approach, ensures that any query or challenge you face with the WS2812B LED strip is addressed promptly and effectively. With Kosoom by your side, you’re not just purchasing a product; you’re investing in a partnership that illuminates your path.

Having navigated through the comprehensive guide on powering and utilizing the WS2812B LED strip, you are now equipped with the knowledge and tools to embark on your lighting projects with confidence. But the journey doesn’t end here! We encourage you to put this newfound knowledge into practice, experiment with different setups, and push the boundaries of what you can create with these versatile LED strips. Share your experiences, challenges, and triumphs in the comments section below, and don’t hesitate to spread the word on social media to inspire others in the community. If there are aspects you wish to delve deeper into or if you have specific questions that weren’t covered in this article, we are eager to hear from you. Your feedback and inquiries are invaluable, helping us to enhance our content and better serve your needs in future updates. Let’s continue to learn, create, and illuminate the world together with the magic of WS2812B LED strips!

how to power ws2812b led strip
how to power ws2812b led strip


What Power Supply Do I Need for WS2812B?:

Use a 5V power supply for WS2812B LEDs, ensuring it provides enough current for your entire strip, calculated at 60mA per LED.

How Much Power Does a WS2812 LED Strip Use?:

A WS2812 LED strip consumes about 60mA per LED at full brightness with all colors on. Multiply by the number of LEDs for total power usage.

Do You Need a Resistor for WS2812B?:

While not mandatory, a small resistor (300-500Ω) on the data line can help protect the first LED from voltage spikes.

How Much Power Does WS2812B Use When Off?:

WS2812B LEDs have negligible power consumption when off, but the controller chip may draw a tiny amount of power.

What Power Supply to Use for LED Strip?:

Choose a power supply with the correct voltage for your LED strip, ensuring it can provide sufficient current for full brightness.

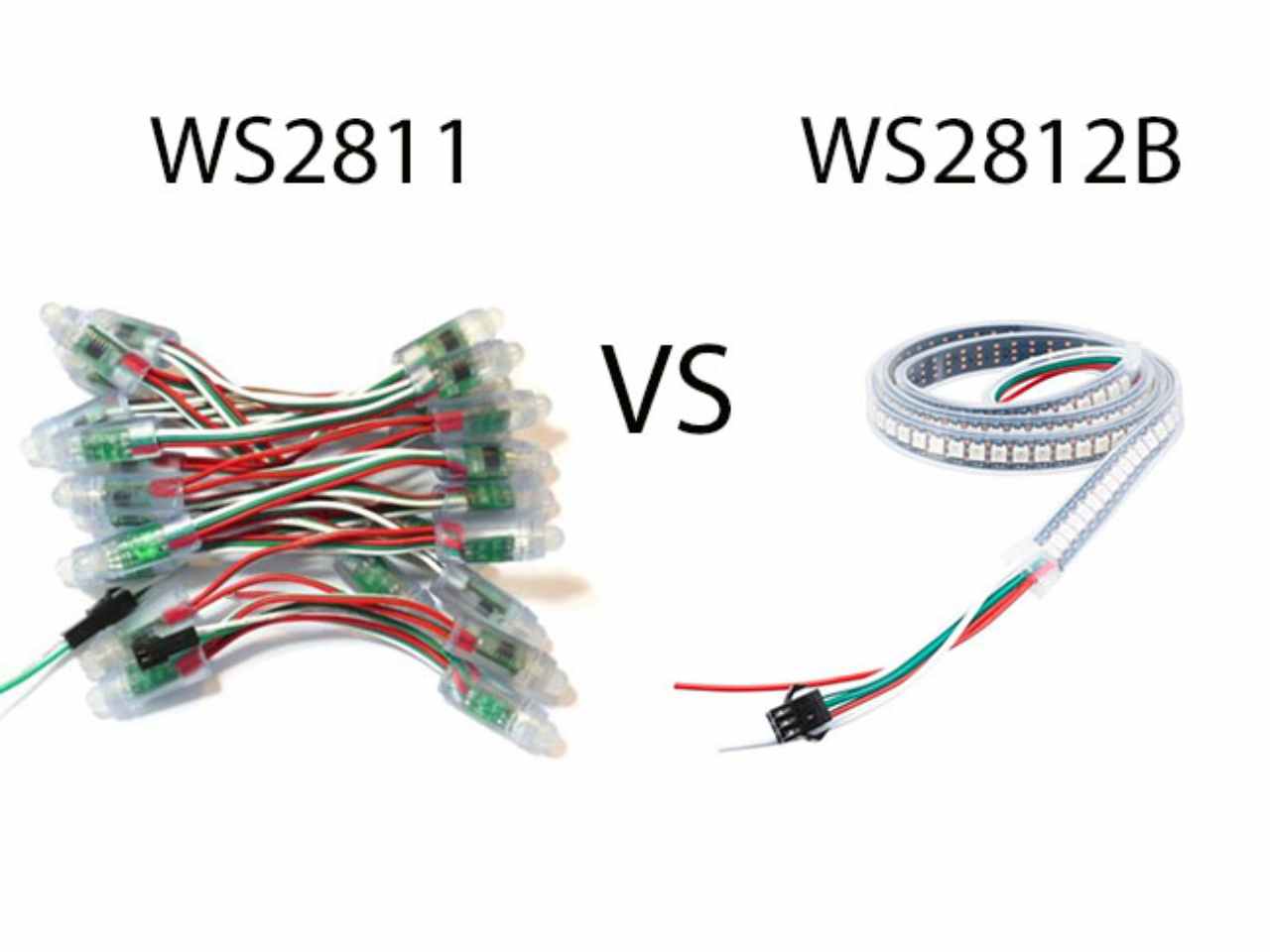

What is the Difference Between WS2812 and WS2812B?:

WS2812B is an updated version of WS2812, featuring improved IC and LED design for better color consistency and reduced heat generation.

How Many Watts is a WS2812B LED?:

Each WS2812B LED can consume up to 0.3W at full brightness with all colors on (5V, 60mA).

Do LED Strips Waste a Lot of Electricity?:

While LED strips are energy-efficient, large installations can still consume a significant amount of electricity, especially at full brightness.

Can I Connect 2 LED Strips to One Power Source?:

Yes, you can connect multiple LED strips to one power source, but ensure it can handle the total current requirement.

Where Do LED Strips Get Power?:

LED strips typically receive power from a DC power supply, which should match the strip’s voltage requirement and provide sufficient current.
