Track lighting, especially with the integration of led lights, a versatile and modern lighting solution, has become increasingly popular in both residential and commercial spaces. This method of lighting allows light fixtures to be attached anywhere on a continuous track device containing electrical conductors. Unlike traditional lighting where each light position requires direct electrical wiring, track lighting offers flexibility as tracks can be mounted to ceilings, walls, or even hung from high vaulted ceilings using rods.
The primary allure of track lighting lies in its ability to highlight specific areas, be it artwork, decor, or architectural features, with precision. Whether you're aiming to illuminate a painting using led track lighting, brighten up outdoor areas with led flood lights, create a cozy reading nook, or add a touch of sophistication to a commercial space, modern lighting solutions provide the adaptability to achieve various lighting moods and aesthetics.
Originating from the innovative mind of Anthony Donato of Lightolier, track lighting has come a long way since its inception. Donato was awarded the first patent related to track lighting in 1961. Today, there are three standard types of tracks used globally, often termed "H", "J", and "L" track, named after the manufacturers that established these standards: Halo, Juno, and Lightolier.
Beyond its functional benefits, track lighting, and other modern solutions like led tri-proof light, offer an aesthetic appeal, seamlessly blending with modern home interiors. With advancements in technology, track lighting systems, as well as innovations like led panel light, have evolved, now available in low-voltage options, offering energy efficiency, especially when paired with LED lights.
To further understand the intricacies of track lighting, as well as other lighting solutions like led tube light, this guide provides a comprehensive overview, drawing insights from various experts in the field.
When it comes to installing track lighting, safety should always be the top priority. Track lighting, including setups with led spotlights, can enhance the ambiance of a room, highlight artwork, and provide functional illumination. However, the installation process involves working with electrical components, which can be hazardous if not handled correctly. Here's a comprehensive guide to ensuring safety during the installation of track lighting:
Importance of Turning Off Electricity at the Circuit Breaker
Before starting any electrical work, it's crucial to turn off the electricity to the area you'll be working on. This can be done by switching off the circuit breaker associated with the room or area. Turning off the power ensures that you won't accidentally come into contact with live wires, which can lead to electric shocks or even electrocution.
Verifying No Power with a Voltage Meter
After turning off the circuit breaker, always double-check that there's no electricity flowing to the wires you'll be working with. A voltage meter is a handy tool for this purpose. By testing the wires with a voltage meter, you can confirm that they are indeed "dead" and safe to handle.
Importance of Up-to-Date Wiring and Meeting Building Codes
Ensuring that your home's wiring is up-to-date and compliant with local building codes is essential. Outdated or non-compliant wiring can pose a fire risk, especially when installing new fixtures like track lighting. If you're unsure about the state of your home's wiring, it's a good idea to consult with a certified electrician. They can inspect the wiring and advise on any necessary updates or changes.
Consulting with a Certified Electrician if Unsure
If at any point during the installation process you feel unsure or uncomfortable, don't hesitate to consult with a certified electrician. Whether it's a question about wiring, fixture placement, or any other aspect of the installation, an electrician can provide expert guidance. Remember, it's always better to be safe than sorry.
Additional Safety Tips:
Verify Wattage Output: Before installing track lighting, check the wattage output of the existing electrical connections. Ensure that the track lighting you're installing won't exceed the electrical capacity of the circuit.
Document Your Setup:
Before disconnecting any wires, take a photo of the existing configuration. This will help you remember how to reconnect everything correctly.
Ground Wire Connection:
Ensure that the ground wire is connected properly. This wire provides a safety release, sending excess current into the ground rather than through the outlet.
After completing the installation, turn the power back on and test your new track lighting. If the lights don't work, recheck all connections.
Safety is paramount when working with electricity. By following the guidelines mentioned above, you can ensure a safe and successful track lighting installation. Whether you're aiming to showcase artwork, enhance room ambiance, or provide functional lighting, track lighting is a versatile choice. However, always prioritize safety to enjoy the benefits of your new lighting without any risks.
Before you embark on the journey of installing track lighting, it's crucial to ensure that your existing electrical setup is compatible and safe for the new installation. Here are some essential checks to perform:
Power Off: Always start by turning off the electricity to the fixture you are working with at the circuit breaker. Ensure the light switches are in the OFF position. Using a voltage meter can help verify that there's no power moving through the wires.
Ensure that the wiring and electrical connections are up-to-date and comply with the current building codes in your area. If uncertain, consult with a certified electrician. Some projects might require permits, so always check with local authorities.
Verifying Wattage Output
Know Your Limits: Determine the wattage output of the existing electrical connections. A standard light fixture can range from 5 to 105 watts. Ensure that the electrical connections can handle the wattage of the track lighting you plan to install.
Consider the Circuit: Think about other lights and appliances on the same circuit. The combined wattage shouldn't exceed the circuit's capacity. If it does, you might overload the circuit, leading to potential hazards.
When to Contact an Electrician
If the track lighting exceeds the wattage output for the circuit, it's time to call in a professional. An electrician can add another circuit to accommodate the new lighting.
If you're considering installing track lighting away from an existing fixture, it's best to consult an electrician to ensure proper wiring and safety.
Materials and Tools Checklist
Planning Your Installation
Type of Tracks: Track lighting comes in standard (straight) tracks and flexible tracks. The former is common for task lighting, while the latter offers more versatility.
Placement: For artwork, position the lighting 18 to 26 inches away. For task lighting, like over kitchen counters, place the track centrally above the workspace. Ensure it's at least six inches away from flammable materials like drapery.
Document and Test
Before disconnecting any wires, take a photo of the existing setup or label each wire. This reference will be invaluable when setting up the new system.
After installation, always test your track lighting. If the lights don't work, recheck the connections.
Remember, track lighting is not just about illumination; it's about enhancing the aesthetics of your space. Whether you're highlighting artwork or creating a mood, the right track lighting can transform a room. Always prioritize safety and don't hesitate to seek professional help if you're unsure about any step.
Materials and Tools Needed
When installing track lighting, it's essential to have the right materials and tools on hand. This ensures a smooth installation process and guarantees the safety and functionality of your new lighting system. Below is a comprehensive list of materials and tools you'll need, compiled from various expert sources.
Rail Kits and Their Components
Rail Kits: These are the foundational components of your track lighting system. They typically come with most of the materials you'll need for installation. However, it's always a good idea to check the contents of your rail kit to ensure you have everything.
Wire Nuts: Used to secure wire connections.
Electrical Wires: These will connect your track lighting to your home's electrical system.
Tracks: The main structure that holds the light fixtures.
Light Fixtures: These are the actual lights that will be attached to the tracks.
Bulbs: Ensure you have the right type and wattage for your fixtures.
Mounting Hardware: This includes screws, anchors, and other items to secure the track to the ceiling.
Having the right tools will make the installation process smoother and safer:
Voltage Meter: Essential for ensuring there's no electricity flowing through the wires before you start working.
Tape Measure: For accurate measurements, ensuring your tracks are placed correctly.
Electrical Tape: Used to insulate wire connections.
Wire Strippers: For preparing the electrical wires for connection.
Drill: Necessary for creating mounting holes in the ceiling.
Safety Glasses: Always prioritize safety. These will protect your eyes from any debris.
Safety First: Before starting, ensure the electricity to the fixture is turned off at the circuit breaker. Use the voltage meter to verify there's no power in the wires.
Wattage Output: Check the wattage output of your existing electrical connections. Ensure the track lighting doesn't exceed the electrical capacity of the circuit.
Planning: Decide on the type of track lighting you want. There are standard (straight) tracks and flexible tracks. Plan your track placement, keeping in mind the items or areas you want to highlight.
Electrical Connections: Document your current wiring setup before making changes. This will help if you need to revert or troubleshoot.
Ground Wire: Ensure the ground wire is connected properly. This is crucial for safety.
Test Run: After installation, test your track lighting to ensure everything works as expected.
Remember, while this guide provides a comprehensive overview, always refer to the manufacturer's instructions that come with your specific track lighting kit. If you're unsure about any step or if your home requires new wiring, it's recommended to consult with a certified electrician. Safety should always be the top priority.
Planning the Installation
Track lighting is a versatile and stylish way to illuminate specific areas of a room, highlight artwork, or provide task lighting. Before diving into the installation process, it's essential to plan and gather all the necessary materials and tools. Here's a comprehensive guide to help you get started:
Understanding Track Lighting Types
Track lighting comes in two primary forms:
Standard or Straight Tracks: These are the most common form of track lighting and are excellent for task lighting and spotlighting. They run in a straight line and can accommodate multiple light fixtures.
Flexible Tracks: These tracks offer more versatility and can be bent or shaped to suit specific areas, such as a sitting or reading area.
Artwork Lighting: To best highlight your artwork or displays, position your lighting approximately 18 to 26 inches away from it. This placement ensures that the artwork is illuminated effectively without causing any glare or shadows.
Task Lighting: For areas like kitchen counters or workspaces, the track should be centrally located above the area to provide adequate illumination for tasks.
Safety Considerations: Ensure that the track lighting is at least six inches away from drapery or other flammable materials. This precaution prevents any potential fire hazards.
Marking the Path
Before installing, mark the path of the track lighting with a pencil. Note the location of the ceiling joists, as this will be crucial for securing the track. If you're unsure about the joist locations, a stud finder can be a handy tool. Ensure that your track aligns with the joists and maintains a parallel track by measuring the same distance inward from the wall at both ends of the planned path.
Safety First: Always ensure that the electricity to the fixture is turned off at the circuit breaker. Use a voltage meter to verify that there's no power in the wires.
Wattage Output: Verify the wattage output of the existing electrical connections. Consider the wattage of other lights and appliances on the same circuit to ensure you don't exceed the circuit's capacity.
Materials and Tools
Track Lighting Kits: These kits typically include wire nuts, electrical wires, tracks, light fixtures, bulbs, and mounting hardware. Ensure you have all the necessary components before starting.
Document your setup by taking photos of the existing wiring configuration. This step will be helpful when connecting the new track lighting.
Ensure the ground wire is connected properly for safety.
After connecting all wires, secure the mounting plate and use the included connectors to create your desired layout.
Once installed, test your new track lighting to ensure everything works as expected.
Note: Always consult a professional if you're unsure about any step or if your home requires new wiring. Safety should always be the top priority.
When installing track lighting, ensuring a safe and secure electrical connection is paramount. This section will guide you through the necessary steps to establish a reliable electrical connection for your track lighting system.
Documenting the Existing Setup
Before making any changes, it's crucial to document the existing electrical setup. Take clear photos of the current wiring configuration. This will serve as a reference when connecting the new track lighting and ensure that you can revert to the original setup if needed.
Stripping Wires for Strong Connections
Properly stripped wires ensure a strong and safe connection. Use wire strippers to remove about half an inch of insulation from the wire ends. This exposes the copper wire, which will be used to make the connection. Ensure that you don't nick or damage the copper wire while stripping.
Ground Wire Connection
The ground wire, often green or bare, plays a vital role in ensuring safety. It prevents electrical shocks in case of a fault. Always ensure that the ground wire from the track lighting connects securely to the ground wire from the electrical box. This connection is crucial for the safety of the entire lighting system.
Connecting Wires Based on Color Coding
Wires are typically color-coded to simplify the connection process:
Black or Red Wire: This is the "hot" wire that supplies power. Connect the black or red wire from the track lighting to the black or red wire from the electrical box.
White Wire: This is the neutral wire. Connect the white wire from the track lighting to the white wire from the electrical box.
Special Cases - Red Wires for Dimmer Switches: If your setup includes a dimmer switch, you might encounter an additional red wire. This wire is specifically for the dimmer functionality. Ensure you connect it as per the manufacturer's instructions.
Table: Wire Connections Overview
Connect to the black or red wire from the electrical box.
Connect to the white wire from the electrical box.
Connect to the ground wire from the electrical box.
Connect as per manufacturer's instructions.
Installing the Track
Track lighting is a versatile and stylish way to illuminate specific areas or features within a room. Whether you're aiming to highlight artwork, create ambient lighting, or add task lighting in a workspace, track lighting can be the perfect solution. Here's a comprehensive guide on how to install track lighting:
1. Safety First
Before starting any electrical work, ensure that the electricity to the fixture you're working with is turned off at the circuit breaker.
Always turn light switches to the OFF position. Use a voltage meter to confirm that there's no power flowing through the wires.
Ensure that your wiring and electrical connections comply with current building codes in your area. If in doubt, consult a certified electrician. Some installations might require permits, so check with local authorities.
2. Verify Wattage Output
Determine the wattage output of your existing electrical connections. Track lighting wattage can vary, so ensure that your connections can handle the load. Consider other appliances on the same circuit to avoid overloading.
If the wattage exceeds the circuit's capacity, you might need to add another circuit or consult an electrician.
3. Gather Materials and Tools
Materials: Track lighting kits usually include wire nuts, electrical wires, tracks, light fixtures, bulbs, and mounting hardware. Ensure you have everything before starting.
Tools: Equip yourself with a voltage meter, tape measure, electrical tape, wire strippers, drill, and safety glasses.
4. Planning the Installation
Decide between standard (straight) tracks or flexible tracks based on your needs.
For optimal lighting, position the track 18 to 26 inches away from artwork or displays. For task lighting, like over kitchen counters, center the track above the workspace.
Plan and mark the track path, ensuring alignment with ceiling joists. Use a stud finder if needed.
5. Electrical Connections
Document your current wiring setup before making changes. This can be done with photos or labeling.
Ensure a proper connection by stripping about half an inch of the rubber coating from the end of each wire.
Connect the ground wire correctly. This is crucial for safety, as it provides a path for excess current.
6. Installing the Track
After wiring, tuck all wires inside the junction box and secure the mounting plate.
Use T-connectors and other connections to achieve your desired layout.
Anchor the track to ceiling joists. If attaching to drywall or plaster, use toggle bolts or anchors for stability.

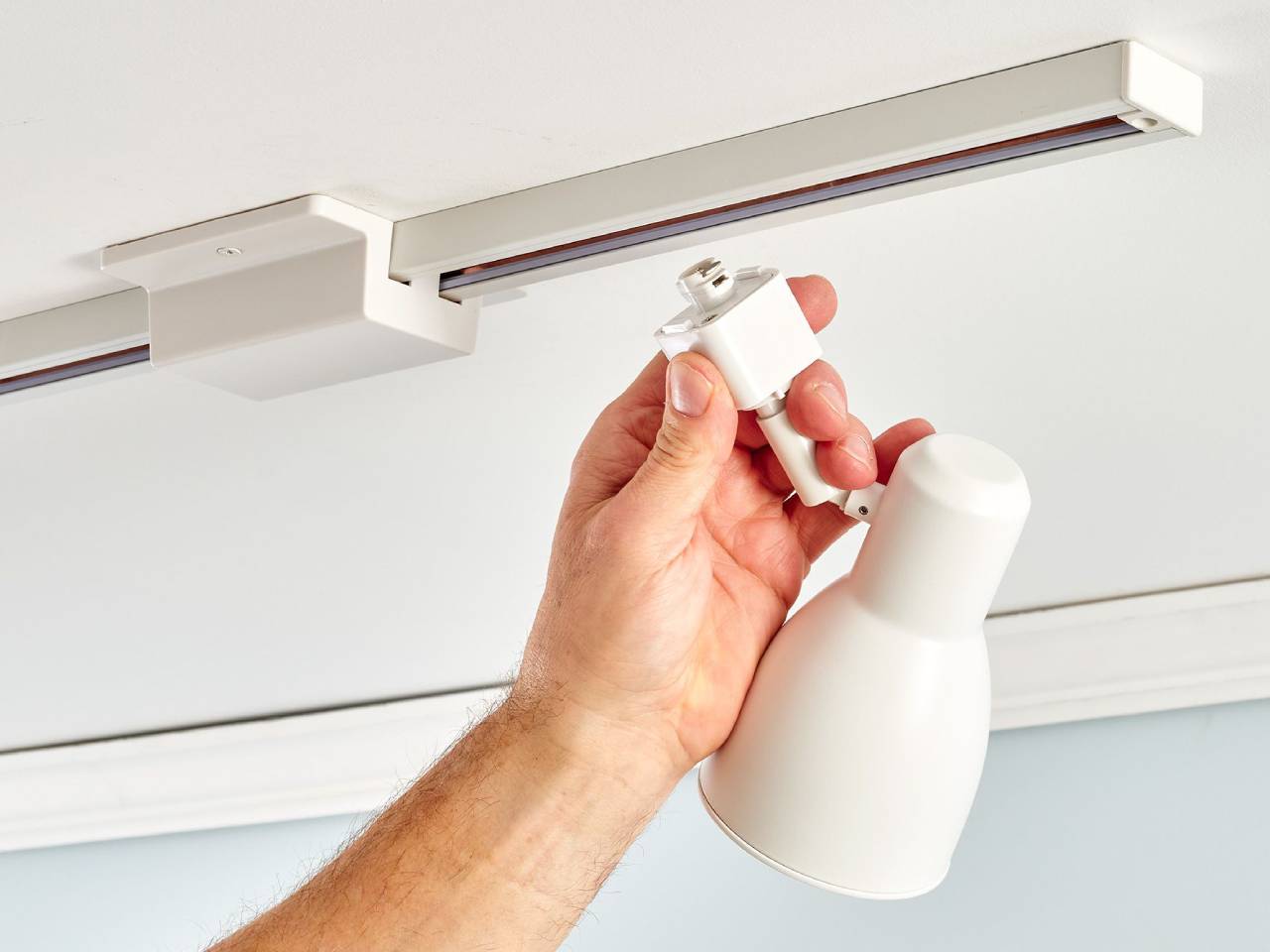

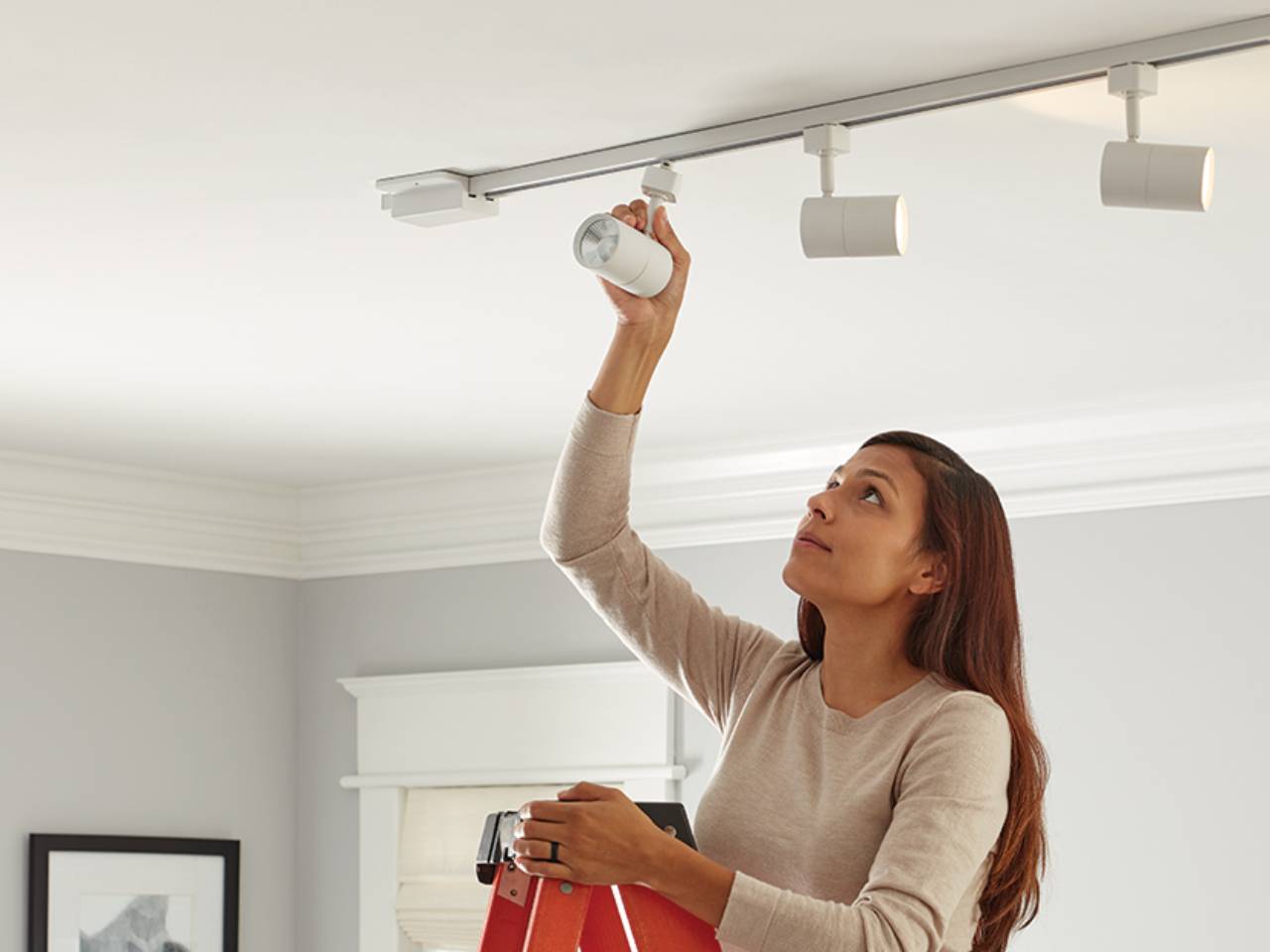

Attach light heads as per the manufacturer's instructions. Once in place, install the bulbs, ensuring they meet the manufacturer's guidelines.
7. Testing and Adjustments
Once everything is set up, turn the power back on and test your track lighting. If there are issues, recheck your connections.
Adjust the light heads for the desired effect. Experiment with different bulbs and lens shapes for the perfect ambiance.
8. Additional Considerations
If you're looking to install track lighting outside of an existing fixture, it's recommended to consult a professional electrician.
Track lighting kits and connectors can be used to run from an existing box to a new location, providing flexibility in installation.
9. Admire Your Work
Once installed, enjoy the versatility and elegance that track lighting brings to your space. Feel free to experiment with different styles and designs to refresh the look.
Note: Always consult a professional before attempting any electrical projects. The above guide is for informational purposes only.
Testing and Adjustments
Track lighting offers a versatile and stylish way to illuminate specific areas or objects within a room. Once you've installed your track lighting system, it's crucial to test and make necessary adjustments to ensure optimal performance. This section will guide you through the testing process, troubleshooting common issues, and adjusting the light heads for the desired ambiance and look.
Before diving into testing and adjustments, always prioritize safety:
Ensure the electricity to the fixture is turned off at the circuit breaker.
Use a voltage meter to verify that there's no power moving through the wires.
Ensure that the wiring and electrical connections adhere to current building codes. If unsure, consult a certified electrician.
Testing the Newly Installed Track Lighting
Power On: After ensuring all connections are secure, turn the power back on at the circuit breaker and switch on the fixture.
Check Each Light: Ensure each light head illuminates. If any light doesn't work, turn off the power and inspect the connections.
Verify Wattage: Ensure the total wattage of the track lighting doesn't exceed the circuit's capacity. Overloading can lead to frequent bulb replacements or potential fire hazards.
Troubleshooting Common Issues
If the lights don't work:
Check Connections: Ensure all wire connections are secure. Revisit each connection, ensuring they're attached properly.
Inspect Bulbs: Ensure you're using the correct bulbs as recommended by the manufacturer. Replace any defective bulbs.
Ground Wire: Ensure the ground wire is connected properly. It should either connect to a green wire or be secured to a grounding screw inside the junction box.
Adjusting Light Heads
Positioning for Artwork: To highlight artwork or displays, position the lighting 18 to 26 inches away to maximize the effect.
Task Lighting: For areas like kitchen counters, position the track centrally above the workspace.
Safety Distance: Ensure the track is at least six inches away from drapery or flammable materials.
Adjustment Tips: Have fun adjusting the light heads to achieve the desired look. If any light heads seem loose, add shims to tighten them. Experiment with different bulbs and lens shapes for varying brightness and color effects.
Consider using special track lighting kits and connectors if you wish to relocate the track lighting from its current position.
Track lighting is versatile. Feel free to substitute different styles of light heads or even add mini-pendants with adapters to create unique lighting designs.
Table: Troubleshooting Track Lighting Issues
Light doesn't turn on
Check and secure all wire connections
Replace the bulb
Ensure total wattage doesn't exceed circuit capacity
Tighten or replace the bulb
Consult a certified electrician
Advanced Installation Tips
Track lighting offers a versatile and stylish way to illuminate specific areas of your home, highlight artwork, or provide task lighting. While the basic installation process is straightforward, there are advanced techniques and considerations that can enhance the functionality and aesthetics of your track lighting system. Here are some advanced
installation tips to help you achieve the best results:
Installing Track Lighting Outside of an Existing Fixture
If you wish to install track lighting away from an existing electrical box, it's crucial to ensure proper wiring and safety:
Safety First: Always turn off the electricity at the circuit breaker and verify there's no power using a voltage meter. Ensure that your home's wiring and electrical connections comply with current building codes. If unsure, consult a certified electrician.
Wattage Check: Determine the wattage output of the existing electrical connections. Ensure that the combined wattage of your track lights doesn't exceed the circuit's capacity. If it does, consider adding another circuit or consulting an electrician.
Relocation Kits: If you're relocating the track lighting from its original position, consider using special track lighting kits designed for this purpose. These kits allow you to run a covered track from the old fixture to the new location, concealing the wires and offering a seamless look.
Using Special Track Lighting Kits for Relocation
Special track lighting kits enable you to move the position of your track lights without extensive rewiring:
Rail Kits: These typically include wire nuts, electrical wires, tracks, light fixtures, bulbs, and mounting hardware. Ensure your kit contains all necessary components or purchase them separately.
Flexible Tracks: Unlike standard straight tracks, flexible tracks can be molded to suit specific areas, offering more design options.
Experimenting with Different Bulbs, Lens Shapes, and Light Head Styles
To achieve the desired ambiance and functionality, experiment with various components:
Bulb Types: Different bulbs offer varying brightness levels, colors, and energy efficiencies. LED bulbs, for instance, are energy-efficient and long-lasting.
Lens Shapes: The shape of the lens can influence the direction and spread of light. Experiment with different shapes to achieve the desired lighting effect.
Light Head Styles: Track light heads come in various styles, from traditional to contemporary. Some lock into place with a 90-degree turn, while others use a metal arm for tightening. You can also use adapters to add mini-pendants or alternate between different light head sizes for unique designs.
Planning: Before installation, plan your track layout. Mark the path with a pencil, noting the location of ceiling joists. Ensure the track is at least six inches away from flammable materials.
Ground Wire Connection: Properly connecting the ground wire is crucial for safety. It provides a path for excess current, preventing potential hazards.
Testing: After installation, test your track lighting system. If the lights don't work, recheck the connections and ensure all wires are securely attached.
By following these advanced installation tips and ensuring safety precautions, you can enhance the look and functionality of your track lighting system, turning any space into a beautifully illuminated area.
When planning to install track lighting in your home, there are several factors to consider beyond the basic installation process. These considerations ensure that your track lighting not only serves its functional purpose but also enhances the aesthetic appeal of your space.
The Aesthetic Appeal of Track Lighting in Modern Homes
Track lighting has evolved from its early days of bulky fixtures to sleek and modern designs that can seamlessly blend with contemporary interiors. The beauty of track lighting lies in its ability to highlight specific areas, such as artwork or architectural features, creating focal points that draw attention. For instance, if you've ever admired a piece of artwork illuminated perfectly on a wall, track lighting was likely responsible for that effect. It's an excellent choice for those looking to turn their homes into mini-art museums or simply showcase their décor in unique ways.
The Flexibility of Track Lighting in Highlighting Specific Areas
One of the primary advantages of track lighting is its flexibility. With adjustable light heads, you can direct light precisely where you want it. This is particularly beneficial for spotlighting artworks or creating task lighting above workspaces like kitchen counters. To maximize the effect of spotlighting, position your lights approximately 18 to 26 inches away from the object or area you want to highlight. Furthermore, track lighting comes in two main forms: standard (or straight) tracks and flexible tracks. While straight tracks are common and great for task lighting, flexible tracks offer more versatility, allowing you to shape them to suit specific areas or designs.
The Energy Efficiency of LED Track Lights
LED track lights are a popular choice due to their energy efficiency. They consume less power compared to traditional bulbs, translating to savings on your electricity bill. Additionally, LED lights have a longer lifespan, reducing the need for frequent replacements. When choosing bulbs for your track lighting, always ensure they are within the manufacturer's recommended wattage to prevent potential hazards.
The Importance of Choosing the Right Track Lighting Style for Your Space
Selecting the right style of track lighting is crucial to ensure it complements your interior design. There are numerous styles available, from minimalist designs to more ornate fixtures. Some track lights even allow for the addition of mini-pendants or varying sizes of hanging fixtures, offering a chance to get creative with your lighting design. When planning your installation, consider the location of the track, ensuring it's at least six inches away from flammable materials like drapes. Also, remember to check local building codes and consult with a certified electrician if you're unsure about the wiring or electrical connections.
Additional Tips and Safety Precautions
Safety First: Always turn off the electricity at the circuit breaker before starting the installation. Use a voltage meter to ensure no power is flowing through the wires.
Verify Wattage: Ensure that the electrical connections can handle the wattage of the track lighting you plan to install. Consider other lights and appliances on the same circuit to avoid overloading.
Document Your Setup: Before disconnecting any wires, take a photo or label each wire. This will help when connecting the new track lighting.
Ground Wire Connection: Properly connecting the ground wire is vital for safety. It provides a path for excess current, preventing potential hazards.
Test Run: After installation, test your track lighting to ensure everything works as expected. If there are issues, recheck your connections.
Enhances interior design
Choose modern designs for contemporary homes
Direct light where needed
Use adjustable light heads
Saves on electricity bills
Opt for LED track lights
Complements interior décor
Consider the room's design and purpose
Prevents electrical hazards
Always turn off electricity; consult an electrician if unsure
Track lighting has emerged as a versatile and sophisticated lighting solution, offering homeowners and interior designers a unique way to illuminate spaces. Its adaptability allows for experimentation with various styles, designs, and configurations, making it a favorite choice for those looking to highlight specific areas, artworks, or architectural features in a room.
1. The Art of Illumination: Track lighting is not just about functionality; it's also an art. As seen in many homes, a well-placed track light can transform a simple wall piece into a focal point, turning your home into a mini-art museum. Whether you're aiming to showcase your decor or create a specific ambiance, track lighting offers the flexibility to achieve your desired effect.
2. Safety First: One of the recurring themes across all sources is the emphasis on safety. Before embarking on the installation journey, always ensure that the electricity is turned off at the circuit breaker. Using tools like voltage meters can provide added assurance. Moreover, it's paramount to ensure that all wiring and electrical connections adhere to the current building codes in your area. When in doubt, consulting a certified electrician is always a wise decision.
3. Planning and Precision: Proper planning is the key to a successful track lighting installation. From determining the wattage output of existing electrical connections to choosing between straight or flexible tracks, every decision plays a crucial role in the final outcome. Additionally, positioning the track lights at optimal distances from artworks or workspaces can significantly enhance their effectiveness.
4. Tools and Materials: Installation requires a set of specific tools and materials. While rail kits often include essential components like wire nuts, electrical wires, and mounting hardware, it's always good to double-check and ensure you have everything at hand before starting.
5. The Power of Adaptability: One of the standout features of track lighting is its adaptability. If you ever wish to change the look, you can easily substitute different styles of light heads or experiment with various bulbs and lens shapes. This adaptability ensures that your lighting remains in sync with evolving interior design trends.
6. Professional Consultation: While many homeowners might be tempted to undertake the installation process independently, complex installations might require professional expertise. Especially if you're considering installing track lighting outside of an existing fixture, it's recommended to seek professional guidance.
In conclusion, track lighting is more than just a lighting solution; it's a design statement. Its ability to add class and sophistication to any interior space is unparalleled. As you embark on your track lighting journey, remember to prioritize safety, plan meticulously, and don't hesitate to experiment with different styles. And, as always, when faced with complexities, turning to professionals can ensure a seamless and safe installation.
