Introduction to Low Voltage Transformers

Low voltage transformers play a pivotal role in outdoor lighting, especially in enhancing the aesthetics of landscapes, gardens, and home exteriors. These transformers are designed to reduce the standard 120-volt electrical supply of homes down to a safer 12 volts. Such transformers are particularly beneficial for powering LED lights, which are energy-efficient and long-lasting. This reduction not only ensures safety but also provides a soft, dramatic light, ideal for highlighting key features of a landscape.

Why Low Voltage Transformers?

Safety: One of the primary benefits of using low voltage transformers is safety. By reducing the electrical supply from 120 volts to 12 volts, the risk of electrical hazards is significantly minimized. This makes it safer for DIY installations and reduces the chances of electrical shocks.
Efficiency: Low voltage fixtures consume the same amount of power as regular lights but can produce more brilliant beams. This efficiency makes them a preferred choice for outdoor lighting.
Versatility: These transformers support various outdoor lighting fixtures, from path lights to in-ground well lights, and can be concealed easily in gardens or under decks. Additionally, they are compatible with track lighting systems, offering a modern and sleek lighting solution for various spaces.

Key Specifications and Features:

Transformer Capacity: It's crucial to choose a transformer that aligns with the project's requirements. For instance, the VOLT® 300 Watt Multi-Tap Low Voltage Transformer can accommodate up to 300W. However, the National Electrical Code specifies that a circuit should only be loaded up to 80% of its maximum. After accounting for current loss through the wire, the true optimal working capacity of a transformer is about 70% of its total capacity.
Types of Transformers: There are two main types:
- Electronic Transformers: Compact in size and support up to 300 watts. Suitable for under-cabinet and cove lighting.
- Magnetic Transformers: Larger and can support up to 1,200 watts, making them ideal for extensive outdoor projects, They also work seamlessly with LED profiles, ensuring a uniform and diffused light distribution.
Additional Features: Modern transformers come equipped with features like photo cells or timers for automatic light control. Some even have thermal detectors to prevent overheating and are rated for wet and damp environments, ensuring longevity and performance.

Safety Precautions:

Safety is paramount when dealing with electrical installations. This is especially true when integrating linear lighting systems, which require precise voltage levels for optimal performance. Always ensure that the transformer is installed following the National Electric Code and local code specifications. It's also recommended to consult a professional if unfamiliar with electrical work.

Benefits of Low Voltage Lighting

Low voltage lighting has become increasingly popular in recent years, especially for outdoor and landscape applications. This lighting solution offers a myriad of advantages that make it a preferred choice for homeowners and professionals alike. Here are the key benefits of low voltage lighting:

Safety: One of the most significant advantages of low voltage lighting is its safety. By reducing the standard 120-volt electrical supply down to just 12 volts, the risk of electrical shocks is minimized. This makes it safer for DIY installations and reduces the potential hazards associated with water sources. For instance, the transformer should be installed at least 5 feet from a pool or spa and at least 10 feet from a fountain to ensure safety.
Energy Efficiency: Low voltage lights consume the same amount of power as regular lights but can produce more brilliant beams, This is evident when powering LED strip lights, which provide vibrant illumination while consuming minimal energy.. This means homeowners can achieve the desired lighting effect without a significant increase in energy consumption. Moreover, transformers, which are essential components of low voltage lighting systems, moderate voltage, ensuring that the lights only use the power they need. This contributes to energy savings in the long run.
Aesthetic Appeal: Low voltage lighting provides a soft, dramatic light that's ideal for highlighting key features of a landscape or architectural details of a home. Whether it's path lights, in-ground well lights, or other landscape fixtures, low voltage lights enhance the appearance of a home's exterior, creating a warm and inviting ambiance.
Flexibility and Control: Many low voltage lighting systems come equipped with features like photo cells and timers, This flexibility extends to powering LED panel lights, which offer uniform illumination across large surfaces. Photo cells detect light levels, automatically turning the lights on when it gets dark and off when there's sufficient natural light. Timers allow homeowners to set specific times for the lights to turn on and off, providing more control over the lighting and potential energy savings.
Durability and Weather Resistance: Most low voltage transformers and lights are designed to withstand various weather conditions. This durability is essential when powering LED tube lights, which are often used in challenging environments like garages and workshops. They often come with weather-protection seals, making them suitable for outdoor installations. This ensures longevity and reduces maintenance costs.
Easy Installation: Low voltage lighting systems are generally easier to install compared to traditional lighting. For instance, installing downlights powered by low voltage transformers can be done without the need for extensive rewiring or modifications. The reduced voltage means thinner cables can be used, and there's no need for deep trenches. The installation process typically involves laying out the lights, mounting the transformer, connecting the cables, and burying the wires shallowly.

In conclusion, low voltage lighting offers a combination of safety, energy efficiency, aesthetic appeal, and ease of installation. The same benefits apply when using LED spotlights, which can focus light on specific areas or objects, enhancing their visibility and appeal. Whether you're looking to illuminate your garden, highlight architectural features, or enhance the ambiance of your outdoor space, low voltage lighting is a reliable and efficient choice.

How to Install a Low Voltage Transformer

Safety Precautions and Warnings

Safety is paramount when installing and using low voltage transformers. These devices play a crucial role in reducing the standard line voltage of a home for use with low-voltage fixtures, such as landscape lights. While they offer many benefits, including energy efficiency and enhanced outdoor aesthetics, it's essential to adhere to specific safety guidelines to ensure a secure and efficient setup.

General Safety Guidelines

Install on Non-combustible Materials: It's vital to ensure that the power unit of the transformer is installed on non-combustible materials. This is particularly important for high bay LED lights, which are often used in industrial settings and require robust and safe power sources. This precaution minimizes the risk of fire hazards.
Avoid Parallel Connections: Connecting multiple power supplies in parallel can lead to electrical complications and potential malfunctions. Always ensure each power unit operates independently.
Maintain Safe Distances from Water: Water and electricity are a dangerous combination. Always install the power unit at a safe distance from pools, spas, or fountains to prevent any accidental electrocutions or system short-circuits.

Transformer Placement

Elevation Matters: The transformer should be mounted at least one foot above the ground. This elevation is crucial, especially when powering LED flood lights, which require a stable and uninterrupted power supply for optimal brightness. This elevation prevents any potential water damage, especially during rainy seasons or in areas prone to flooding.
Vertical Mounting: Always ensure that transformers are mounted vertically. This orientation ensures optimal performance and longevity of the device.
Heat Considerations: Transformers can generate heat during operation. It's advisable to avoid mounting them on vinyl or any other heat-sensitive materials to prevent any potential damage or melting.

Transformer Specifications and Capacity

Transformers play a pivotal role in low voltage lighting systems, ensuring that the power supplied to the lights is both safe and efficient, This is especially true for LED tri-proof lights, which are designed to withstand dust, water, and impact, requiring a consistent and reliable power source. Let's delve into the intricacies of transformer specifications and how to select the right capacity for your installation.

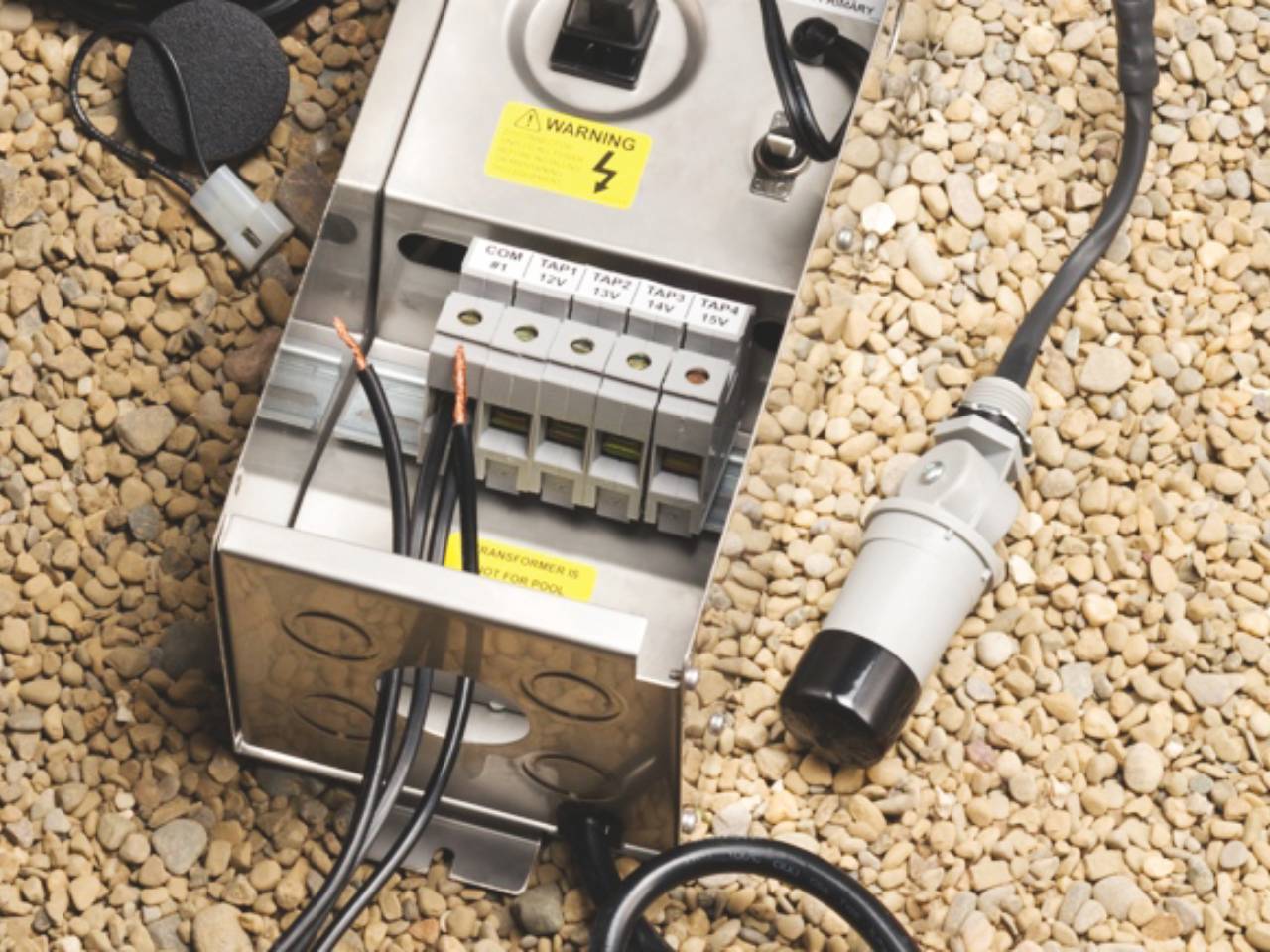

Understanding Taps and Wattage

Different Taps and Their Corresponding Voltages:
Transformers come with various taps to provide different voltage outputs. For instance, the Garden Light LED High Power Transformers offer four taps with the following specifications:

TAP 1: 12V
TAP 2: 13V
TAP 3: 14V
TAP 4: 15V

Each tap corresponds to a specific wattage and wire gauge (AWG) specification, ensuring that the lights receive the appropriate voltage.

Importance of Calculating Total Wattage of the Installation:
It's crucial to calculate the total wattage of all the lights in your installation. This combined wattage determines the required transformer wattage. For instance, if you're using the VOLT® 300 Watt Multi-Tap Low Voltage Transformer, each common tap can accommodate up to 300W. However, it's essential to remember that the National Electrical Code specifies that a circuit can only be loaded up to 80% of its maximum. After accounting for current loss through the wire, the true optimal working capacity of a transformer is about 70% of its total capacity.

Transformer Sizing

Ensuring Total Lamp VA Does Not Exceed Transformer Capacity:
When sizing your transformer, it's essential to ensure that the total lamp Volt-Ampere (VA) of all fixtures connected to the transformer does not exceed 70% of its VA capacity. This ensures efficient operation and longevity of both the transformer and the lights.

Importance of Considering the National Electrical Code and Voltage Loss:
Adherence to the National Electrical Code is non-negotiable. It provides guidelines to ensure safe and efficient electrical installations. Additionally, it's crucial to account for voltage loss, especially in longer installations. Voltage loss can lead to dim lights and reduced efficiency. To combat this, one can use the provided voltage loss calculations to select the appropriate wire gauge.

Authoritative Data and Numbers:

Voltage Taps: Garden Light LED High Power Transformers offer four taps with voltages ranging from 12V to 15V.
Transformer Capacity: The VOLT® 300 Watt Multi-Tap Low Voltage Transformer can accommodate up to 300W per common tap. However, the optimal working capacity is approximately 70% of the total capacity.
National Electrical Code: A circuit should only be loaded up to 80% of its maximum capacity.

Installation Process

A comprehensive guide to installing a low voltage transformer, ensuring safety, efficiency, and longevity of your outdoor lighting system.

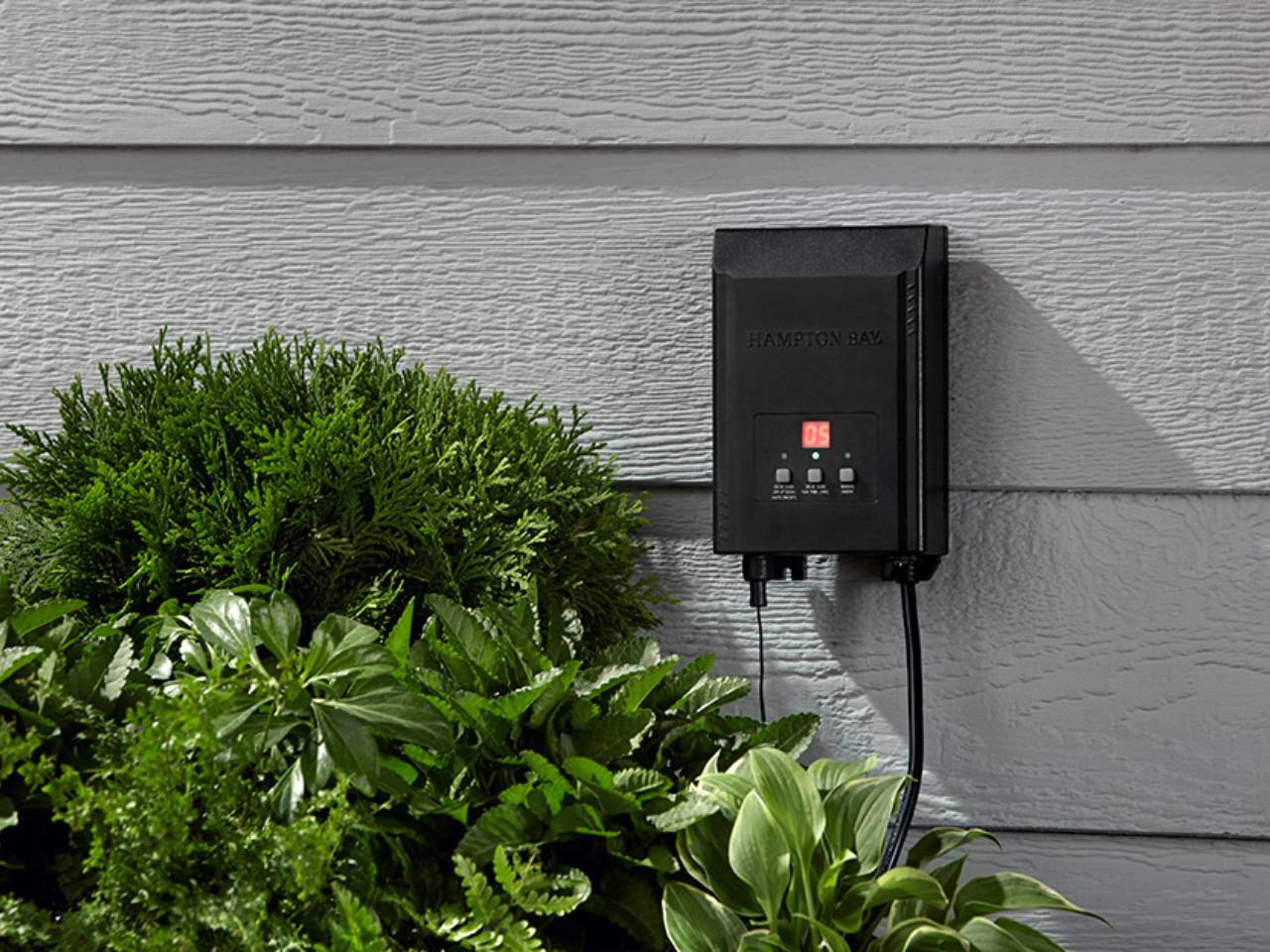

Mounting the Transformer

Mounting your transformer correctly is crucial for its longevity and safety. The transformer should be mounted to a solid foundation using keyhole slots. Depending on the type and brand, the transformer should be at least one foot above the ground to prevent any potential water damage. It's essential to use the correct fasteners based on the mounting material. For instance, stainless steel screws and anchors are recommended for certain transformers. Moreover, the transformer should be mounted vertically, ensuring it's aligned correctly. Remember, transformers can become hot, so avoid mounting them on vinyl or other combustible materials.

Data Point: Transformers should be installed at least 5 feet from a pool or spa and at least 10 feet from a fountain for safety reasons.

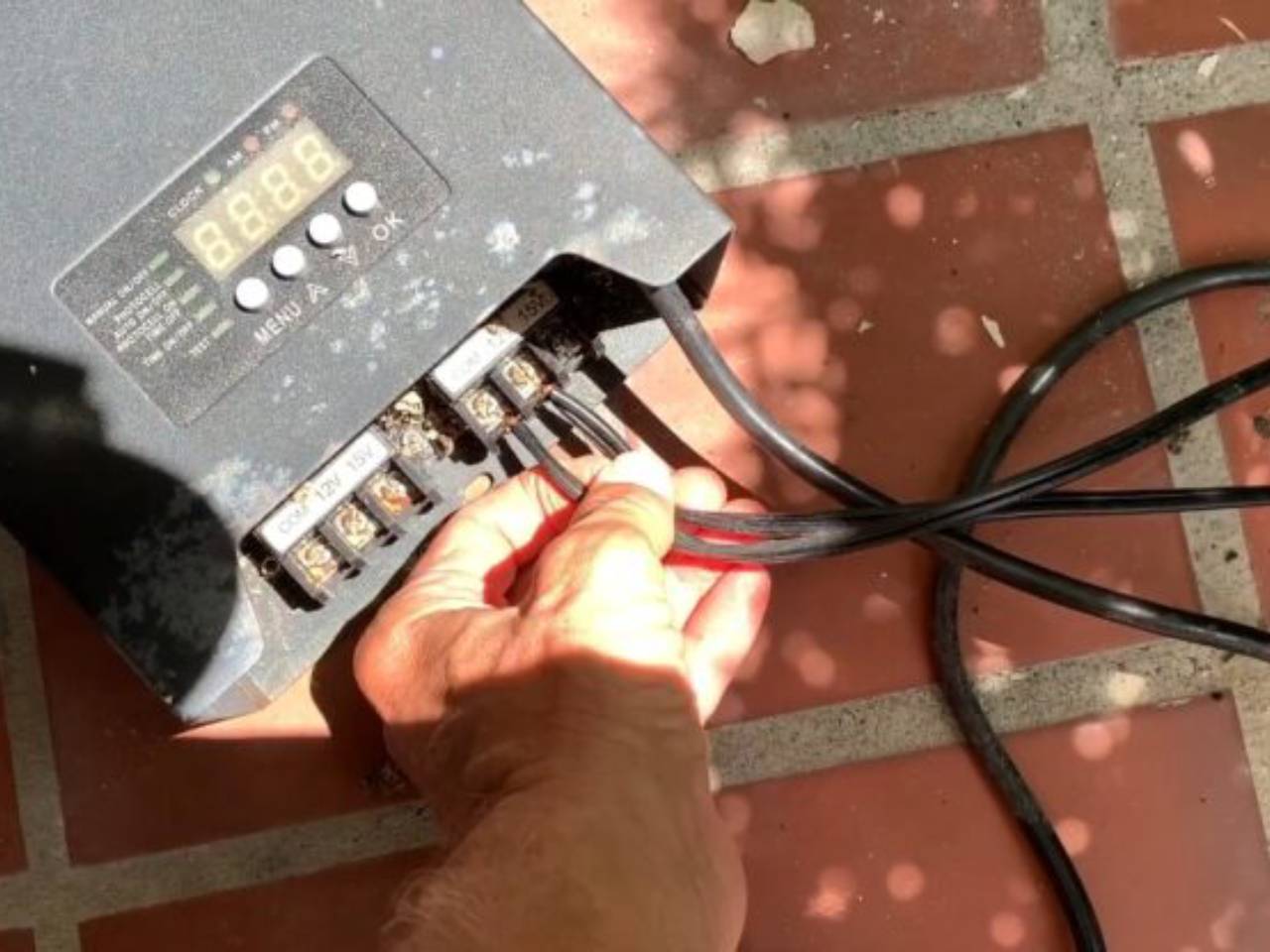

Connecting Cables and Wires

The connection process begins by feeding the low voltage cables through the transformer's knockouts. These cables then connect to predetermined voltage TAPs and COMs. It's essential to ensure that the wires are securely tightened in the terminal blocks to prevent any loose connections. The maximum wattage per COM on most transformers is 300W. When determining the load, consider the total wattage of the installation and select the correct TAP voltage and wire size based on this total wattage and the distance from the first fixture to the transformer.

Data Point: For optimal performance, the correct voltage at each fixture should be between 10.5 and 11.8 volts, as measured using a true RMS voltmeter.

Setting Up Timers and Photocells

Timers and photocells offer automated control for your lighting system. To install a 24-hour timer, remove the front cover of the control panel and plug the timer cord into the designated slot. Set the desired time for your lights to turn on and off. For photocell installation, ensure the transformer is off and unplugged. Remove the designated knockout cover from the transformer's side, connect the photocell, and position it strategically to avoid artificial light interference. Photocells can turn the system on at dusk and off at dawn, while timers can be set to specific times, offering more precise control.

Data Point: Using both the photocell and timer in combination allows homeowners to achieve more accurate and energy-efficient lighting control.

Troubleshooting Common Issues

When installing a low voltage transformer, it's essential to ensure that everything runs smoothly. However, like any electrical installation, issues can arise. This section provides solutions to common problems faced during and after installation.

Checking Lamp Voltages and Amps

Using a true RMS voltmeter is crucial when checking fixture voltages. The correct voltage for halogen lamps should be between 10.5 and 11.8 volts. It's essential to ensure that the input and output currents are within safe limits. Transformers are marked with the maximum input current allowed. Always ensure the input current does not exceed this maximum rated current.

Addressing Circuit Breaker Issues

Every transformer comes with a built-in circuit breaker designed to protect against electrical short circuits. If a circuit break occurs, the first step is to disconnect the transformer. After identifying and fixing the issue, you can then reset the breaker. Remember, the National Electrical Code specifies that a circuit can only be loaded up to 80% of its maximum. After accounting for current loss through the wire, the true optimal working capacity of a transformer is about 70% of its total capacity.

General Troubleshooting Tips

Checking Power at the GFI Outlet: Ensure that the transformer is plugged into a GFCI (ground-fault circuit-interrupter) circuit. This outlet detects current flows from positive to neutral points and will shut the circuit down if there are inconsistencies.
Testing Timer Outlets: Inside the transformer cabinet, there's a timer outlet. Test this to ensure it's functioning correctly.
Toggle Switches: All toggle switches should be in the “ON” position. This might seem basic, but it's a common oversight.
Testing the Secondary Side of the Transformer: After installation, operate the system for five minutes to check for any hot spots in the electrical connections. This will help identify any potential issues early on.

Authoritative Data:

Low voltage fixtures consume the same amount of power as other lights but often produce more brilliant beams.
Transformers reduce the standard 120-volt line voltage of a home for use with low-voltage fixtures.
The VOLT® 300 Watt Multi-Tap Low Voltage Transformer has circuit breakers connected to a common tap, which can accommodate up to 300W.
The National Electrical Code specifies that a circuit can only be loaded up to 80% of its maximum. After accounting for current loss through the wire, the true optimal working capacity of a transformer is about 70% of its total capacity.
