How to cut & connect cob led strip? – All you need to know

Quick & Easy Lighting Solutions For Brightening Up A Dark Room -About lighting-ideas

How to cut COB LED Strip lights?

Cutting COB LED strip lights is a straightforward process with a couple of key points to remember. First, ensure precise alignment along the designated cutting line. COB LED strips consist of multiple parallel circuits, meaning a malfunction in one circuit won't affect others. The cutting regions correspond to individual loops, such as a series circuit of 12 COB LED lights in a 12V strip. Incorrect cutting within a loop damages it, resulting in non-functional lighting. Second, maintain a tidy cut to prevent accidental damage to loops and LED sections. To cut COB strips, scissors suffice, though a ruler aids in measuring the desired length beforehand.

The strip's PCB board features clearly marked cut points, aligning with the strip's internal circuit design. Various lengths of cutting lines exist due to the parallel connections of small units before each group of cuts. These parallel units remain functional even after cutting. For comprehensive cutting and installation instructions, consult Kosoom LED Lighting Blog's dedicated article. This article provides a step-by-step breakdown of installing COB light strips, covering preparation, measurement, cutting, power connection, testing, positioning, power supply and controller attachment, and final adjustments for preferred lighting.

How to connect COB LED Strip Lights?

COB LED strip lights offer efficient and versatile lighting solutions, but knowing how to cut and connect them properly is essential. When connecting two COB LED strips without soldering, start by inserting the segments into the connector, ensuring alignment of positive and negative poles. The connector's metal piece should match the solder joint on the strip. Press the metal piece onto the solder joint to establish an electrical connection. Testing the lights after connecting is crucial to ensure they light up. To navigate installation challenges, such as non-straight paths, use jumper cable connectors. Remember, avoid installing COB LED strips at 90-degree angles to prevent damage. For corners, corner connectors are recommended. Additionally, T-connectors facilitate linking multiple COB LED light strips together.

Incorporating COB LED strip lights into your lighting setup can enhance your space's aesthetics and efficiency. By understanding the simple yet effective process of connecting and cutting these lights, you'll be able to create a well-lit environment. Whether you're opting for a seamless lighting transition around corners or need to leap over obstacles, the connectors and jumpers available make installation hassle-free. Prioritize testing the lights after connection to troubleshoot any issues. As you embark on your LED lighting journey, keep in mind the diverse range of lighting options available, including linear lights, ceiling lights, and spotlights, to tailor your illumination according to your preferences.

Remember, when dealing with electrical components, it's crucial to prioritize safety and follow the manufacturer's instructions. Always disconnect power before making any connections or modifications. By staying informed and following these steps, you'll be well-equipped to master the art of connecting and cutting COB LED strip lights for an illuminating experience.

How To Choose The Right Solderless COB LED Connector?

Choosing the right solderless COB LED connector is crucial for a seamless and effective connection of your COB LED light strip. One key factor to consider is the connector's width, which must match that of the COB LED strip to ensure a secure fit. Mismatched sizes, such as attempting to connect a 10mm COB LED connector to an 8mm COB LED strip, can lead to complications. Another essential detail to keep in mind is the pinpoint of the COB strip. To ensure a successful connection, these factors should align accurately.

For optimal results, it's important to select connectors based on the type of COB LED strip you're working with. For single-color high CRI 95+ COB LED light strips, opt for 2-pin connectors. If you're dealing with CCT dimming COB LED strips or addressable COB LED strip lights, 3-pin connectors are suitable. RGB COB LED strip lights call for 4-pin connectors, while RGBW COB LED strips require 5-pin connectors. For RGBCCT COB LED strips, 6-pin connectors are the appropriate choice.

By ensuring your connector matches the strip's width and pin configuration, you can achieve a hassle-free connection that enhances the functionality and aesthetics of your COB LED light setup. Whether you're dealing with RGB, CCT, or single-color COB LED strips, selecting the right solderless connector is essential for a successful and efficient installation process.

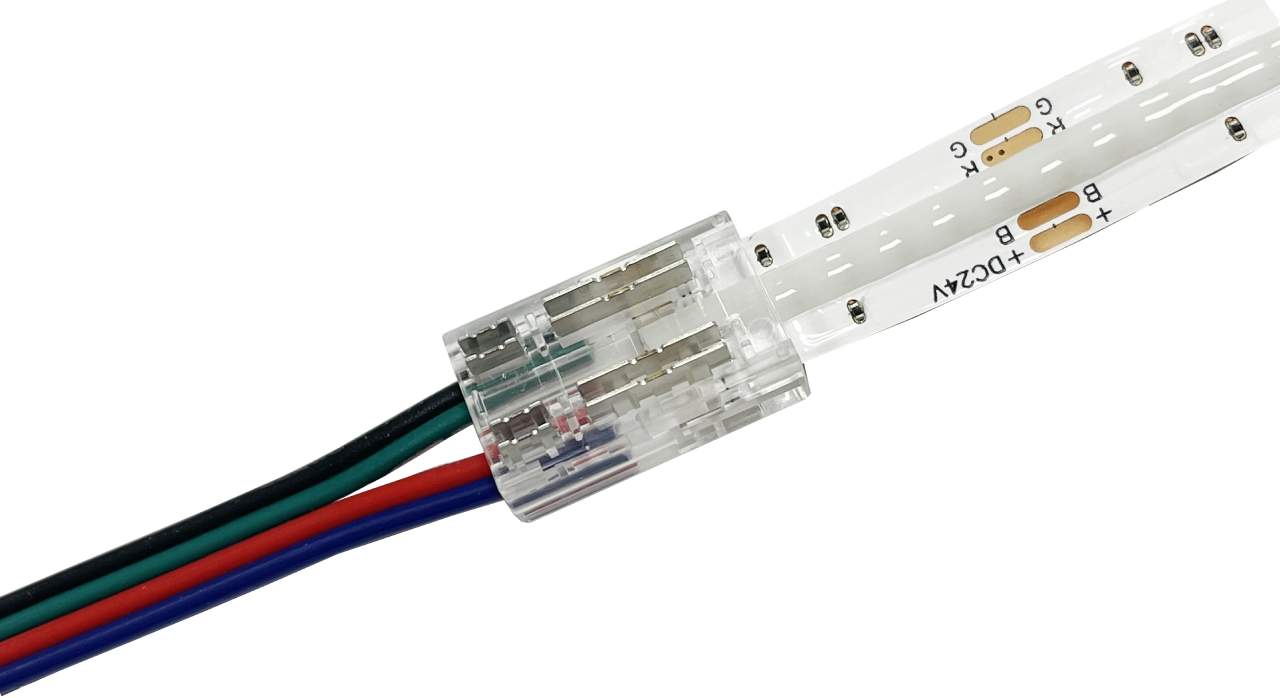

Solderless COB LED Connector

How to install COB LED Strip Lighting?

Installing COB LED strip lighting is a straightforward process that brings uniform and efficient illumination to your spaces. These versatile lights come with adhesive backing, allowing you to effortlessly attach them to various surfaces such as metal, plastic, and plates. For even better lighting effects and prolonged LED strip life, consider employing LED aluminum profiles, also known as LED aluminum extrusions or LED light channels. These profiles not only enhance the strip's uniformity but also aid in heat dissipation, ensuring a longer product lifespan. Yiford offers a wide range of aluminum profiles to choose from. For those seeking flexibility, the Neon Silicon Tube series is perfect, with its bendable and distortion-friendly design. If you're after a rigid linear lighting solution, the LED Aluminum Profile series provides numerous size options to fit any corner. Commercial settings benefit from the Ceiling Lights special-shaped series, ideal for large-scale, easily customizable lighting arrangements.

Silicone LED channels provide another avenue for creativity, allowing COB light strips to be shaped into myriad forms, both indoors and outdoors. Pairing COB light strips with LED aluminum profiles creates captivating artistic spaces. Before embarking on your project, it's essential to consider factors like COB light strip selection, housing options, installation methods, and connection techniques. Need guidance on powering COB LED strip lights? These strips can be directly linked to a LED transformer or connected to a LED controller and power supply according to your preference. Installation is a breeze with adhesive backing or mounting clips, and for more detailed knowledge on COB LED strips, check out this resource. Illuminate your spaces effortlessly with the sophistication and efficiency of COB LED strip lighting.

How to configure the right led power supply?

Configuring the proper power supply for your COB LED strip is crucial to ensuring optimal performance and longevity of your lighting setup. The selection process involves calculating the required power and understanding the distinctions between waterproof and non-waterproof power supply options.

Calculating the Required Power

Before choosing a power supply, it's essential to calculate the necessary wattage. To do this, multiply the wattage per meter of the COB LED strip by the desired length of the strip. For instance, if you're using a 10W per meter COB LED strip and need to power a 5-meter length, the base calculation is 5 meters multiplied by 10W per meter, totaling 50 watts. However, to accommodate potential fluctuations and ensure reliable operation, it's advisable to add 20% to the calculated value. In this case, the final required power would be 60 watts. This additional margin safeguards against power spikes and other variables, making your COB strip's performance more stable.

Choosing the Right Power Supply

When selecting a power supply, it's vital to remember that you should never use a power supply with the same or lower power rating than the calculated required power. Opting for a power supply that exceeds the required wattage is permissible, as your COB strip will only draw the power it needs. For instance, if your COB strip's required power is 60 watts, a power supply rated at 60 watts or higher would be appropriate. In this way, you're ensuring that your power supply can adequately accommodate the demands of your lighting system.

Connection Considerations

When working with COB LED strips, it's important to consider the connection layout. Connecting a lengthy light strip can lead to excessive current and potential damage to the strip. For a COB LED strip with a 10-meter per watt specification, it's recommended to limit the longest strip length to 5 meters. If you need to cover a greater distance, connecting the strips in parallel before linking them to the power supply is advisable. This setup helps distribute the current evenly, reducing the risk of overloading the strips.

Waterproof vs. Non-Waterproof Power Supply

Power supplies are available in two main types: waterproof and non-waterproof. Waterproof power supplies come with a wire connection, making them suitable for setups exposed to moisture or outdoor conditions. On the other hand, non-waterproof power supplies feature terminal or DC terminal connections and are more suitable for indoor applications. The choice between these options depends on the specific requirements of your project.

In conclusion, configuring the right power supply for your COB LED strip involves accurate power calculation, choosing an appropriate power supply with a higher rating than the calculated power, and considering connection setups. Additionally, deciding between waterproof and non-waterproof power supplies depends on your project's environmental needs. By following these guidelines, you can ensure a safe, efficient, and reliable COB LED lighting system for your UK-based projects.


To cut a COB LED strip, you can use a pair of scissors. First, measure the length you need with a ruler, then cut along the measured line. This process is simple and requires only basic tools. Keep in mind that COB LED strips can vary, so it’s essential to follow manufacturer guidelines for proper cutting. This method is suitable for UK residents who want to customize their lighting solutions.

Most LED strips today can be cut without breaking them. Look for a cutting line or scissor icon at spaces where lights can be safely cut without damaging the circuit. These spots usually have a pair of copper dots at the end of the LED. Remember, this may vary by brand. Make sure to follow the guidelines specific to your LED strip. This allows for customization to your desired length while keeping the lights functional.

Yes, you can bend COB LED lights. COB lights are flexible as they have small diodes close together, allowing them to curve into tight spaces or fit around corners. This flexibility makes them suitable for various shapes and areas. This is due to the compact arrangement of the diodes, which enables bending to accommodate different spaces and layouts. If you’re in the UK and need lighting solutions that can adapt to different environments, COB LED lights are a practical option.

Certainly! When cutting LED light strips, it’s important to follow the marked cut lines. This ensures that the LED lights will still work after cutting. These lines are designed for safe cutting, as they are where the circuits are closed. Cutting outside these lines can cause problems. Remember, certain Hue lightstrips can also be cut along these marked lines to maintain functionality. It’s essential to stick to the cut lines for a successful outcome.

COB LED strips, while efficient, come with drawbacks. They demand a reliable external power source and efficient heat sink for optimal performance. Repairing lighting fixtures with COB chips is tougher, and color choices are limited. Compared to SMD chips, COB strips are pricier. For UK consumers, it’s vital to consider these factors when choosing lighting solutions.
